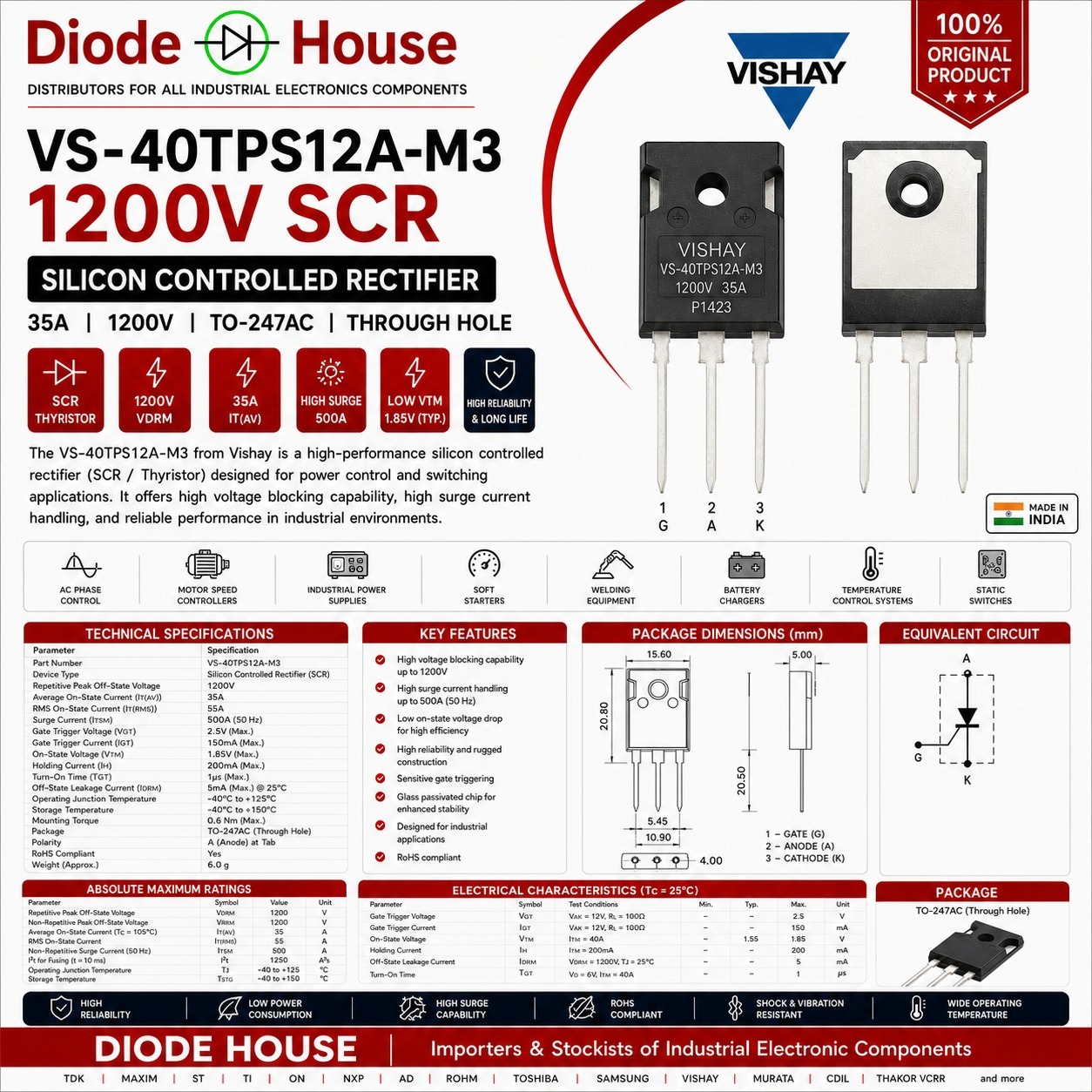

Manufacturer: Vishay Semiconductors
Part Number: VS-40TPS12A-M3
Device Type: Silicon Controlled Rectifier (SCR / Thyristor)
Key Specifications
• Repetitive Peak Off-State Voltage (VDRM/VRRM): 1200 V
• Average On-State Current (IT(AV)): 35 A
• RMS On-State Current (IT(RMS)): 55 A
• Surge Current (ITSM): 500 A (50 Hz)
• Gate Trigger Voltage (VGT): 2.5 V (Max)
• Gate Trigger Current (IGT): 150 mA (Max)
• On-State Voltage (VTM): 1.85 V (Max)
• Holding Current (IH): 200 mA (Max)
• Package: TO-247AC (Through Hole)
• Operating Temperature: -40°C to +125°C
• RoHS Compliant: Yes
Applications
• AC Phase Control
• Soft Starters
• Motor Speed Controllers
• Industrial Power Supplies
• Battery Chargers
• Welding Equipment
• Temperature Control Systems
• Static Switches
