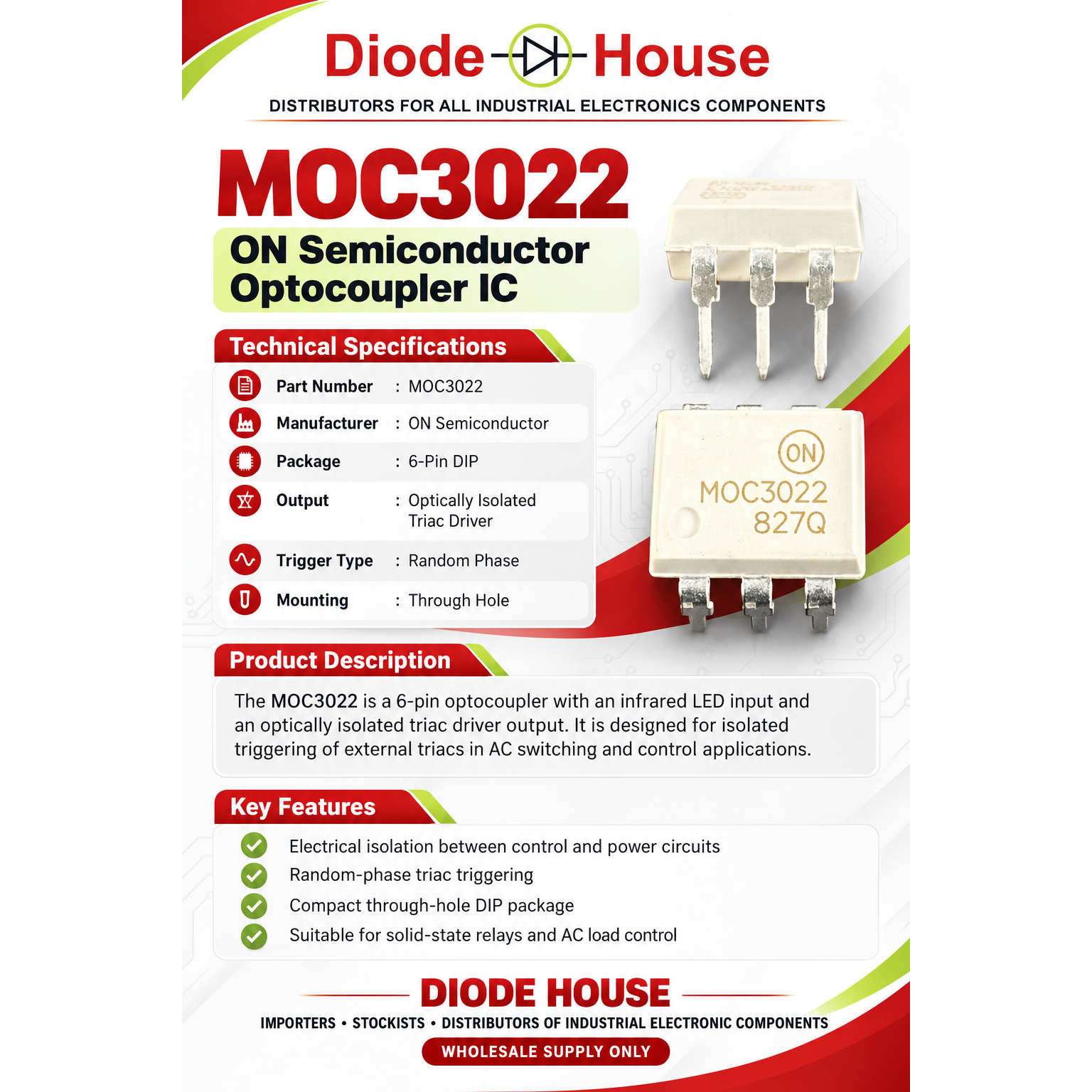

This MOC3022 optocoupler from onsemi is a high-performance semiconductor device designed for reliable signal isolation. Commonly known as an optocoupler, it is widely used in industrial electronic circuits for switching and control applications.
The MOC3022 is a 6-pin DIP optocoupler featuring an infrared LED optically coupled to a triac driver output. It provides electrical isolation between low-voltage control circuits and AC power switching circuits. This random-phase triac driver is suitable for applications requiring isolated triggering of external triacs.
Technical Specifications
Specification
Details
Product Type
Optocoupler IC
Part Number
MOC3022
Manufacturer
ON Semiconductor
Package Type
6 Pin DIP
Output Type
Optically Isolated Triac Driver
Trigger Type
Random Phase
Isolation
Optical Isolation
Applications
AC Switching, Solid State Relays, Motor Control, Industrial Control Circuits
Mounting Type
Through Hole
Key Features
Optical isolation between input and output circuits
Random-phase triac driver output
Compact 6-pin DIP package
Suitable for AC load switching applications
Used in industrial and electronic control circuits
