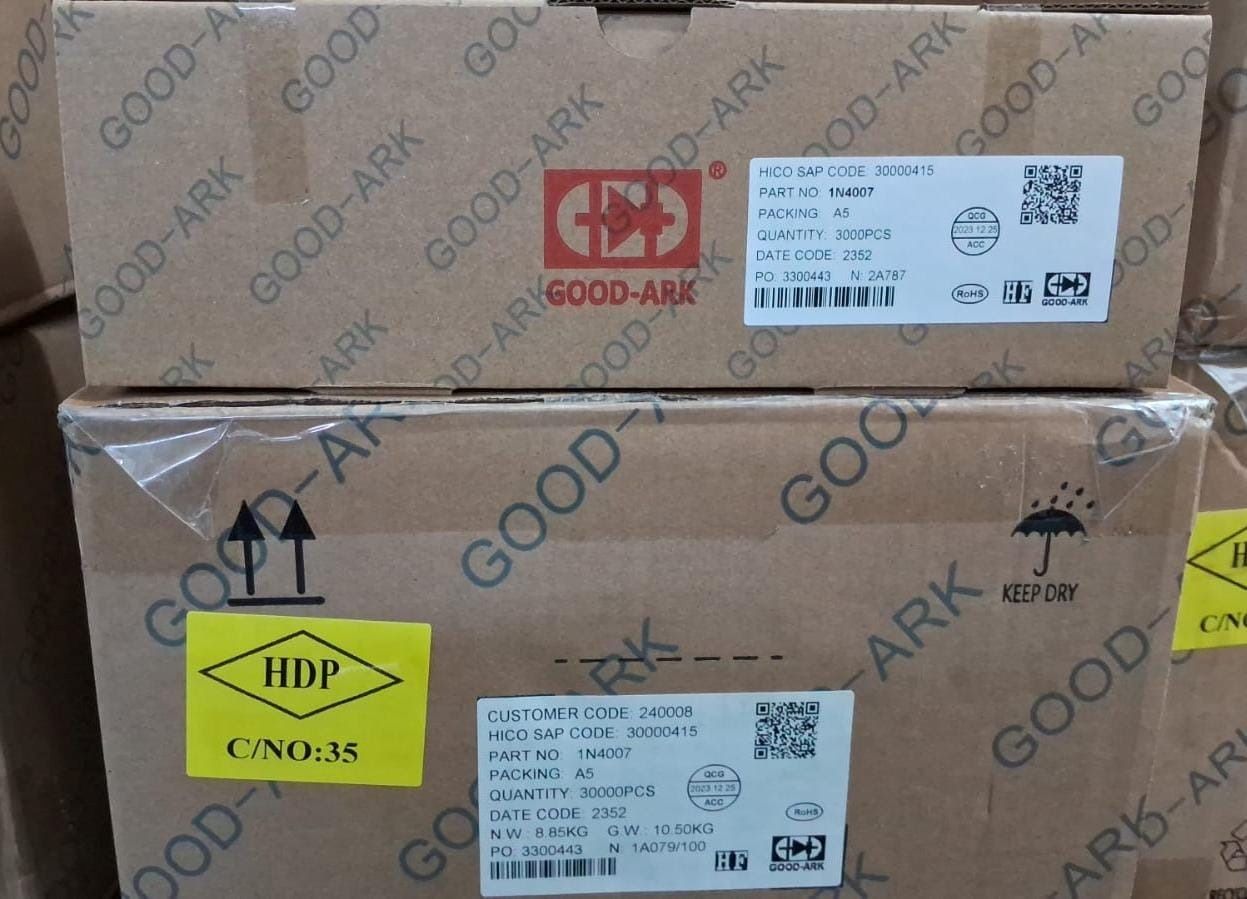

Good-Ark 1N4007 General Purpose Rectifier Diode – DO-41 Package
The 1N400x (or 1N4001 or 1N4000) series is a family of popular 1 A general-purpose silicon rectifier diodes commonly used in AC adapters for common household appliances. The IN4007 diode is a device that allows current flow through only one direction. That is the current should always flow from the Anode to the cathode. For 1N4007 Diode, the maximum current carrying capacity is 1A it withstands peaks up to 30A. Featured by Diode House Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible.
Features:
Low coat construction
Low forward voltage drop
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed: 260°C/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension
Features/Specs:
Manufacturer: MIC
Pin Count: 2
Instantaneous Forward Voltage: 1.1V
Repetitive Peak Reverse Voltage: 1000V
DC Blocking Voltage: 1000V
RMS Voltage: 700V
Average Forward Rectified Current : 1A
Peak Forward Surge Current: 30A
DC Reverse Current at Rated: 5μA
Full Load Reverse Current, full cycle average: 30μA
Typical Junction Capacitance: 30pF
Operating Junction Temperature Range -55°C ~ -150°C
Mounting: Through Hole
Supplier Package: DO-41
Diameter: 2.7 mm
Approx weight: 1 gm
Compliant: ROHS
