Key Features
• Maximum Average Forward Current: 15A
• Peak Reverse Voltage: 1000V
• Single Phase Bridge Rectifier
• Glass Passivated Chip Construction
• Low Forward Voltage Drop
• High Surge Current Capability
• Compact GBU Package
• Excellent Thermal Performance
• RoHS Compliant Design
• Suitable for PCB Mounting
Applications
• SMPS Power Supplies
• Industrial Equipment
• UPS Systems
• Battery Chargers
• Inverters
• LED Power Supplies
• Home Appliances
• Motor Control Circuits
• Air Conditioner Power Boards
Specifications Table
Parameter Value
Part Number GBU1510
Device Type Bridge Rectifier
Forward Current (IF) 15A
Reverse Voltage (VRRM) 1000V
Package GBU
Mounting Type Through Hole
Operating Temperature -55°C to +150°C
Configuration Single Phase Bridge

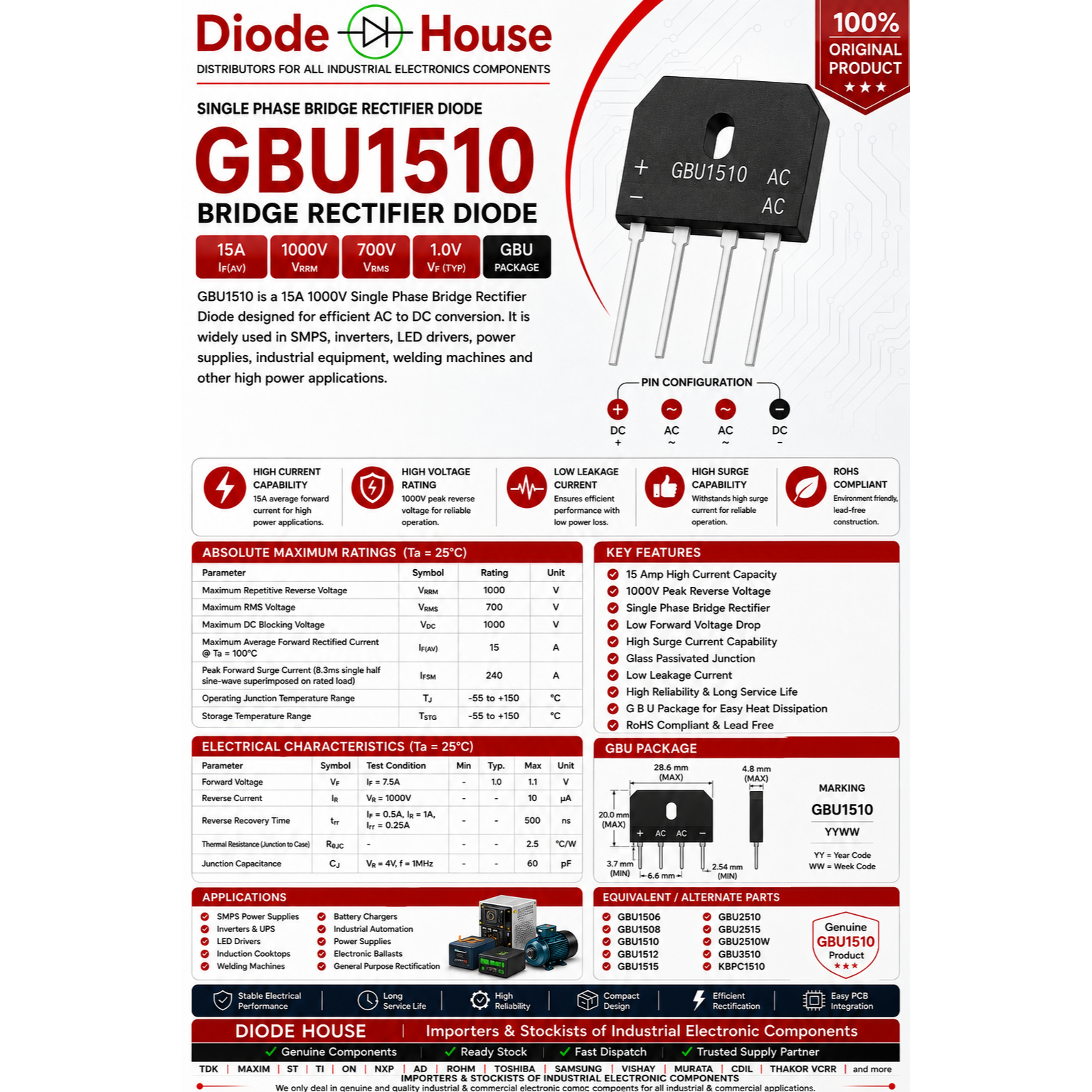

GBU1510
BRIDGE RECTIFIER DIODE
15A | 1000V
✔ High Surge Current Capability
✔ Low Forward Voltage Drop
✔ Glass Passivated Junction
✔ High Reliability Performance
✔ Compact GBU Package
Applications:
SMPS • UPS • Inverters • Battery Chargers • Industrial Power Supplies
GENUINE ELECTRONIC COMPONENTS
READY STOCK AVAILABLE
