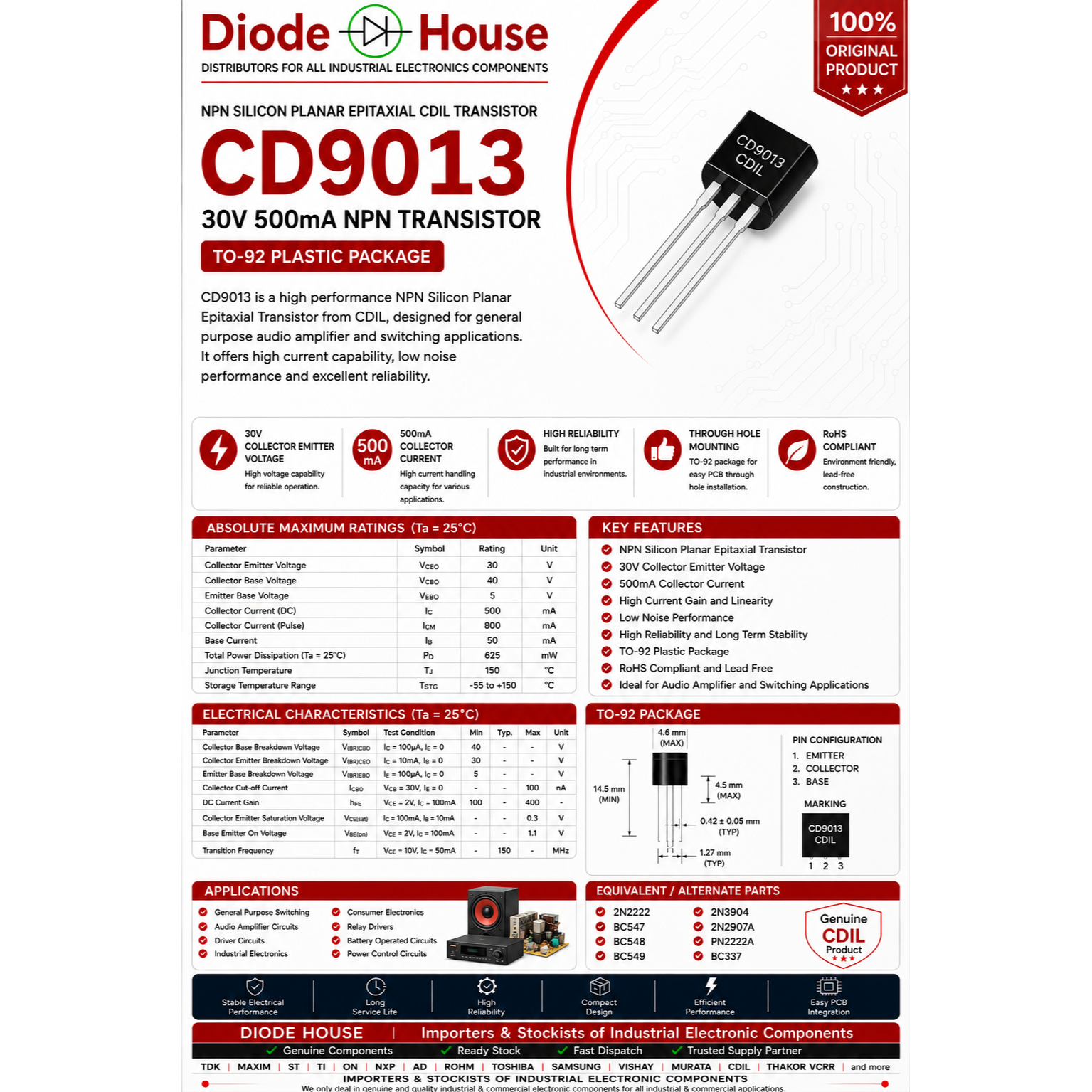

CD9013 is a TO92 package NPN Silicon Planar Transistor designed for General Purpose Audio Amplifier and Switching Applications.
Features:
• NPN Silicon Planar Transistor
• TO92 Plastic Package
• Collector Emitter Voltage VCEO 30V
• Collector Current IC 500mA
• Low Saturation Voltage
• High Current Gain
• Suitable for Audio Amplifier Circuits
• Reliable Performance and Long Service Life
Applications:
• Audio Amplifiers
• General Purpose Switching
• Consumer Electronics
• Power Supply Circuits
• Signal Amplification
• Industrial Electronic Equipment
Specifications:
• Part Number: CD9013
• Transistor Type: NPN
• Package: TO92
• VCEO: 30V
• VCBO: 40V
• VEBO: 5V
• Collector Current: 500mA
• Power Dissipation: 625mW
