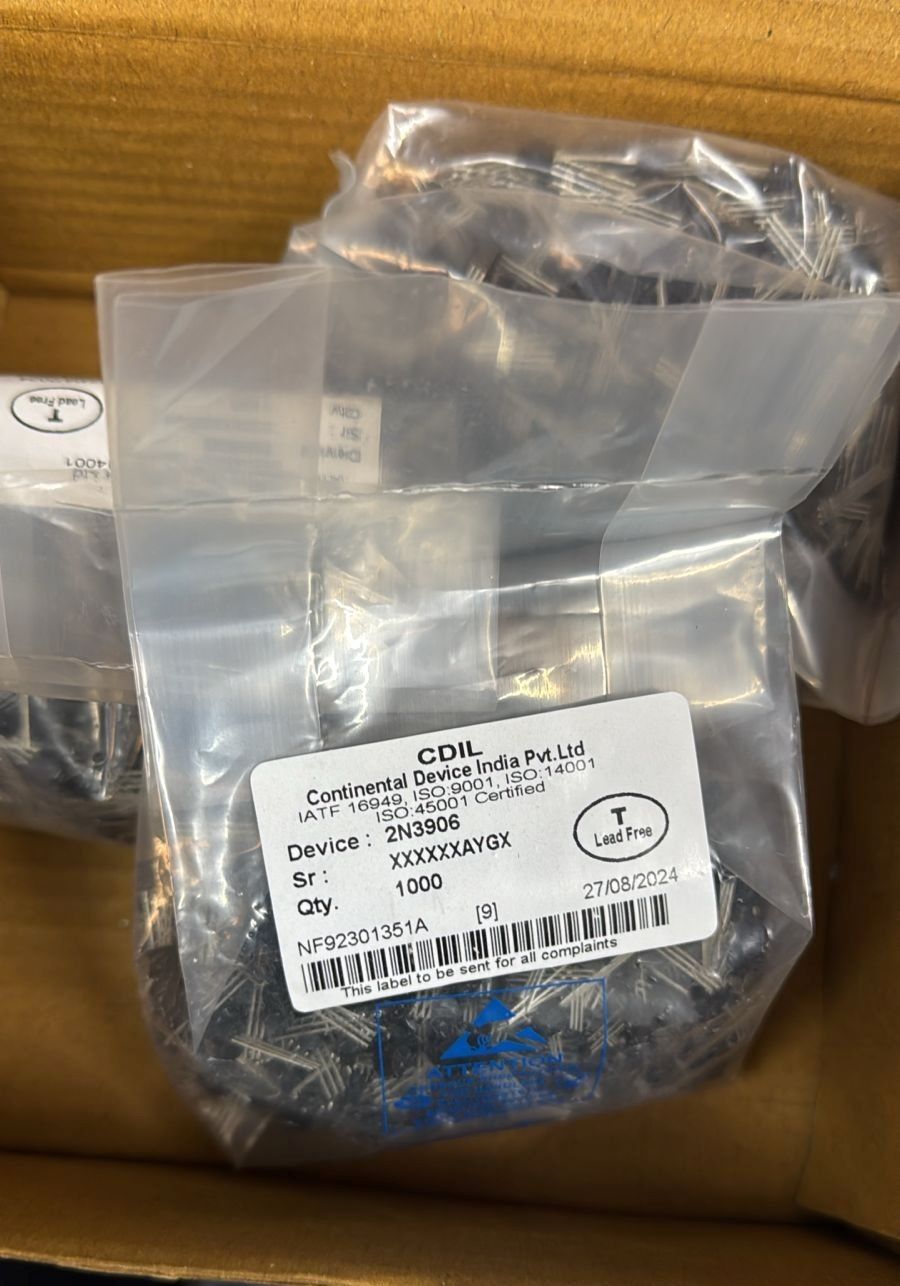

2N3906 PNP General Purpose Transistor 40V 200mA – TO-92 Package
The 2N3906 is a commonly used PNP bipolar junction transistor intended for general-purpose low-power amplifying or switching applications. It is designed for low electric current and power and medium voltage and can operate at moderately high speeds. 2N3906 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor’s terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.
Features:
Advanced process technology
Low error voltage
Fast switching speed
Full-voltage operation
High power and current handling capability
Features/Specs:
Manufacturer Part No: T2N3906
Manufacturer: Continental Device India Pvt Ltd (CDIL)
Product Type: BJTs – Bipolar Transistors
Transistor Polarity: PNP
Configuration: Single
Collector-Emitter Voltage VCEO Max: – 40 V
Collector- Base Voltage VCBO: – 40 V
Emitter- Base Voltage VEBO: – 5 V
Collector-Emitter Saturation Voltage: – 400 mV
Maximum DC Collector Current: – 200 mA
Pd – Power Dissipation: 625 mW
Gain Bandwidth Product fT: 250 MHz
Minimum Operating Temperature: -55°C
Maximum Operating Temperature: +150°C
DC Current Gain hFE Max: 300
Mounting Style: Through Hole
Package/Case: TO-92-3
Application:
Darlington pair transistors
In flasher and dual LED circuits
High-speed switching applications
Television and home appliance circuits
High-frequency inverter and converter circuits
As a switch for high voltage and low current
As a switch for high gain and low saturation voltage
General-purpose audio amplifiers
