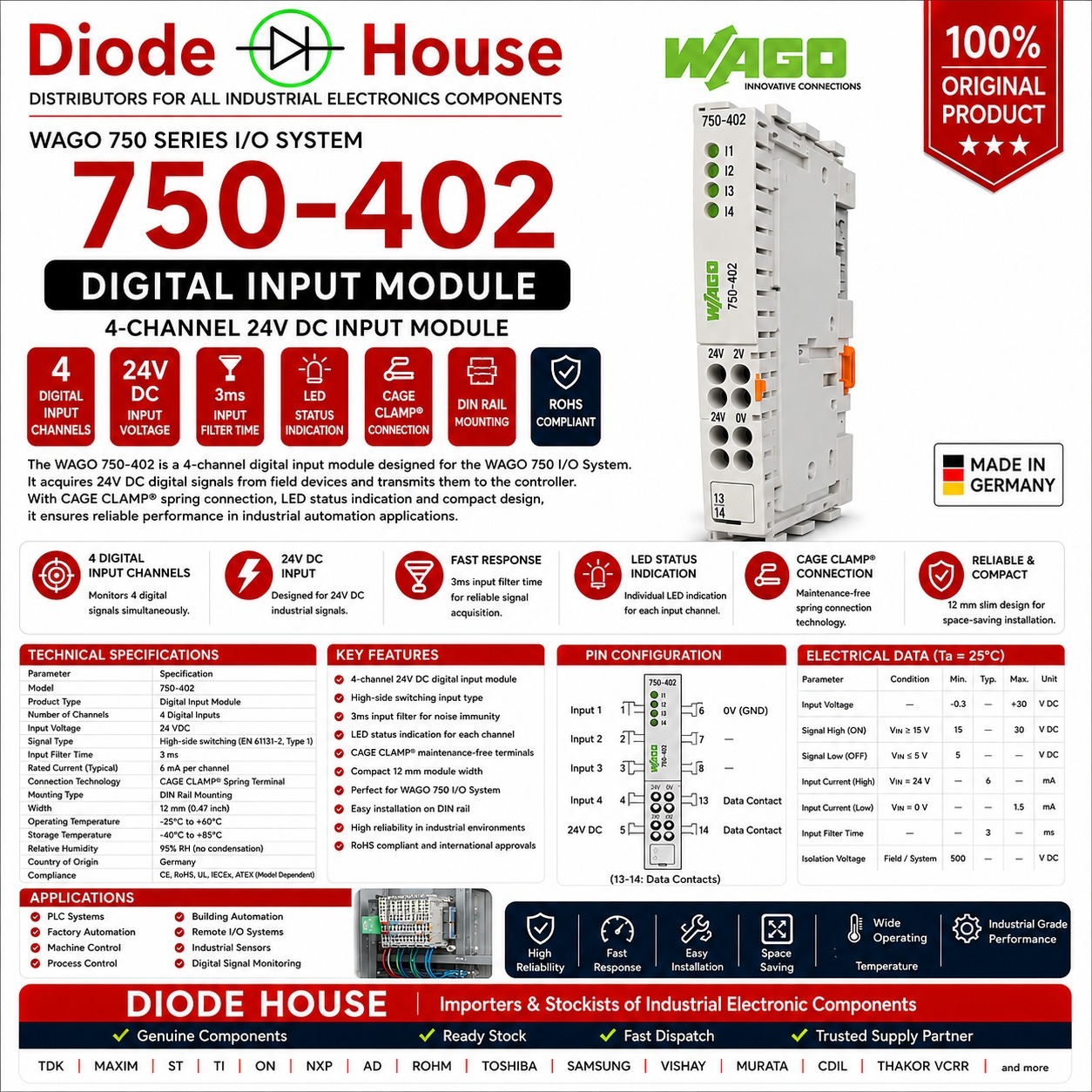

WAGO 750-402 is a 4-channel 24VDC Digital Input Module for the WAGO 750 I/O System. It provides reliable digital signal acquisition for PLC and industrial automation applications. Manufactured in Germany, it features CAGE CLAMP spring terminals, DIN rail mounting, compact design, LED channel indication, and RoHS compliance.
Key Features
• 4 Digital Input Channels
• 24 VDC Signal Input
• High-side switching inputs
• LED status indication for each input
• Compact 12 mm module width
• Designed for WAGO 750/753 Remote I/O Systems
• Reliable industrial automation performance
Typical Applications
• PLC Automation Systems
• Factory Automation
• Process Control
• Machine Control Panels
• Digital Sensor Interface
• Building Automation
• Remote I/O Stations
________________________________________
________________________________________
Technical Specifications
Parameter Value
Brand WAGO
Model 750-402
Product Type Digital Input Module
Channels 4 Digital Inputs
Input Voltage 24 VDC
Filter Time 3 ms
Mounting DIN Rail
Width 12 mm
Series WAGO 750/753
Connection CAGE CLAMP Spring Terminal
Country of Origin Germany
RoHS Yes
