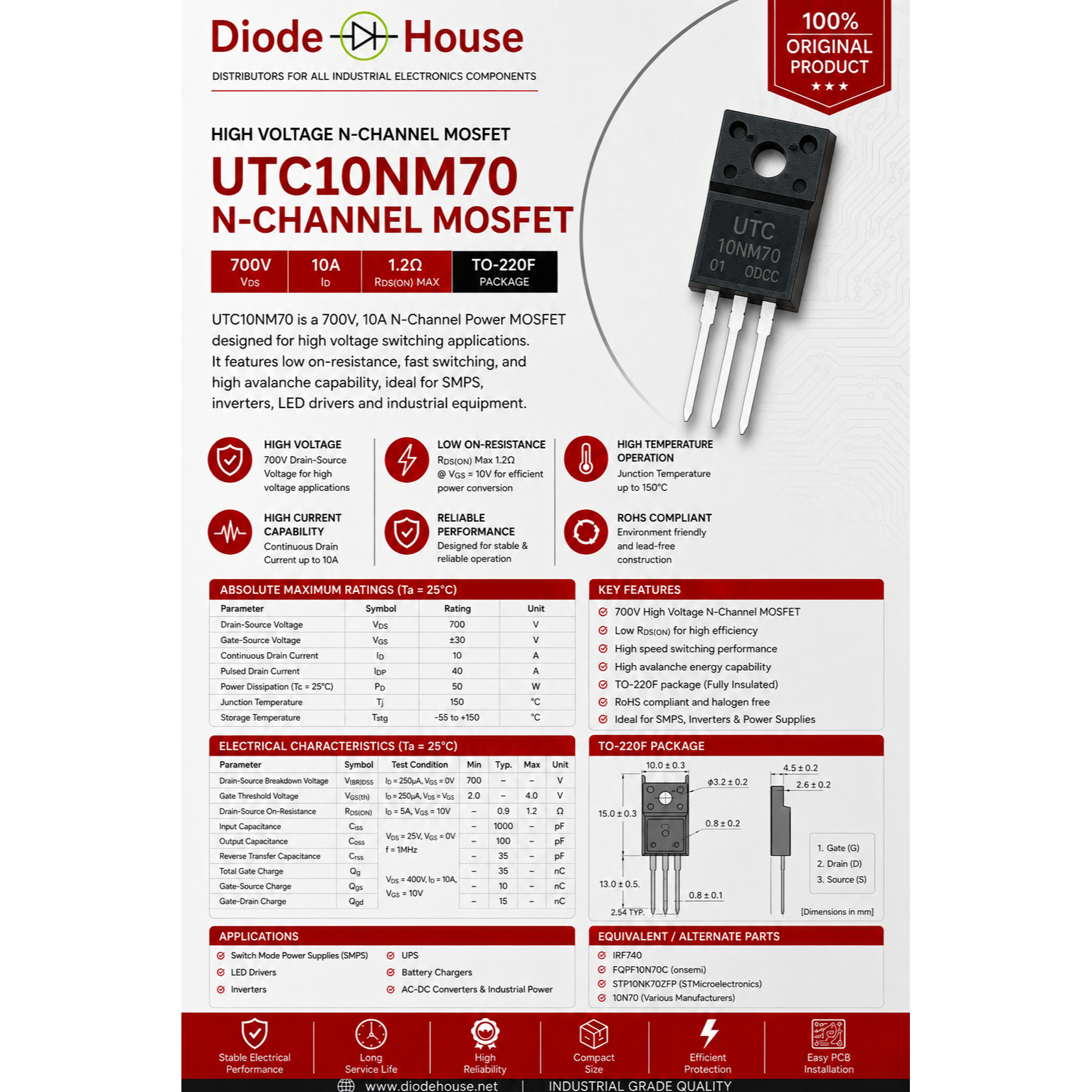

UTC 10NM70L N Channel Power MOSFET TO220F Package is a high-performance power semiconductor device designed for demanding switching applications in SMPS, UPS systems, inverters, battery chargers, LED drivers, solar power systems, motor control circuits, industrial automation equipment and power management solutions. Manufactured by UTC Unisonic Technologies, this MOSFET features 700V Drain Source Voltage, 10A Continuous Drain Current, low gate charge, fast switching speed and excellent avalanche capability. The insulated TO220F package provides enhanced electrical isolation, improved thermal performance and high reliability in industrial and commercial electronic equipment. Diode House is one of the most trusted stockists and distributors of genuine industrial electronic components across India, supplying original MOSFETs, IGBTs, Diodes, Bridge Rectifiers, ICs, Capacitors, Optocouplers, Power Modules and Semiconductor Devices to OEMs, EMS companies, service industries and manufacturers. ________________________________________ Technical Specifications Parameter Specification Part Number UTC 10NM70L Manufacturer UTC Unisonic Technologies Device Type N Channel Power MOSFET Package TO220F Mounting Type Through Hole Polarity N Channel Drain Source Voltage VDS 700V Continuous Drain Current ID 10A Gate Source Voltage VGS ±30V RDS On Typical 0.85 Ohm Gate Charge Low Gate Charge Design Power Dissipation High Power Capability Operating Temperature -55°C to +150°C Switching Speed High Speed Switching Body Diode Yes RoHS Compliant Yes Technology Advanced MOSFET Technology ________________________________________ Features • High Voltage 700V MOSFET • 10A Continuous Drain Current • Low On State Resistance • Fast Switching Characteristics • Excellent Avalanche Energy Capability • High Reliability Construction • Insulated TO220F Package • Low Gate Charge Design • Superior Thermal Performance • Reduced Power Loss • High Efficiency Operation • Suitable For High Frequency Applications • RoHS Compliant Device • Long Operational Life • Industrial Grade Quality ________________________________________ Applications • SMPS Power Supplies • Offline Switching Power Supplies • LED Drivers • UPS Systems • Solar Inverters • Industrial Inverters • Motor Drives • Battery Chargers • Power Factor Correction Circuits • Welding Equipment • Industrial Automation • Telecom Power Systems • Consumer Electronics • AC DC Power Conversion • High Voltage Switching Applications • Energy Storage Systems • Power Management Circuits ________________________________________ Benefits • High Efficiency Power Conversion • Reduced Heat Generation • Lower Switching Losses • Improved System Reliability • Compact Circuit Design • Longer Equipment Life • Excellent High Voltage Performance • Stable Operation Under Heavy Load • Reduced Maintenance Requirements • Cost Effective Industrial Solution ________________________________________ Available From Diode House Diode House is a leading stockist and distributor of genuine electronic components and power semiconductors in India. We supply original MOSFETs, IGBTs, Rectifiers, Fast Recovery Diodes, Schottky Diodes, Bridge Rectifiers, Optocouplers, Capacitors, Resistors, ICs and Industrial Electronic Components for OEM, EMS and industrial applications. ________________________________________ Alternate Names Keywords For Searching UTC10NM70L 10NM70L UTC 10NM70L 10NM70L MOSFET UTC MOSFET 700V MOSFET 10A MOSFET N Channel MOSFET Power MOSFET TO220F TO220F MOSFET High Voltage MOSFET SMPS MOSFET UPS MOSFET Solar Inverter MOSFET Industrial MOSFET Switching MOSFET Power Switching Transistor Offline SMPS MOSFET 700 Volt MOSFET 10 Amp MOSFET UTC Power MOSFET Unisonic MOSFET TO220F Power MOSFET High Frequency MOSFET Industrial Power MOSFET ________________________________________ Equivalent Brands And Part Numbers • UTC 10NM70L • STP10NK70Z STMicroelectronics • STF10NK70Z STMicroelectronics • FQPF10N70 Fairchild Onsemi • FQP10N70 Onsemi • TK10A70D Toshiba • IPA10N70 Infineon • IRF10N70 International Rectifier • 2SK2611 Toshiba • MDF10N70 MagnaChip • K10A70D Toshiba • SPP10N70 Infineon ________________________________________ Product Category: MOSFET Transistor Package Type: TO220F Mounting: Through Hole Countrywide Availability: Pan India Supply Through Diode House Distribution Network.
