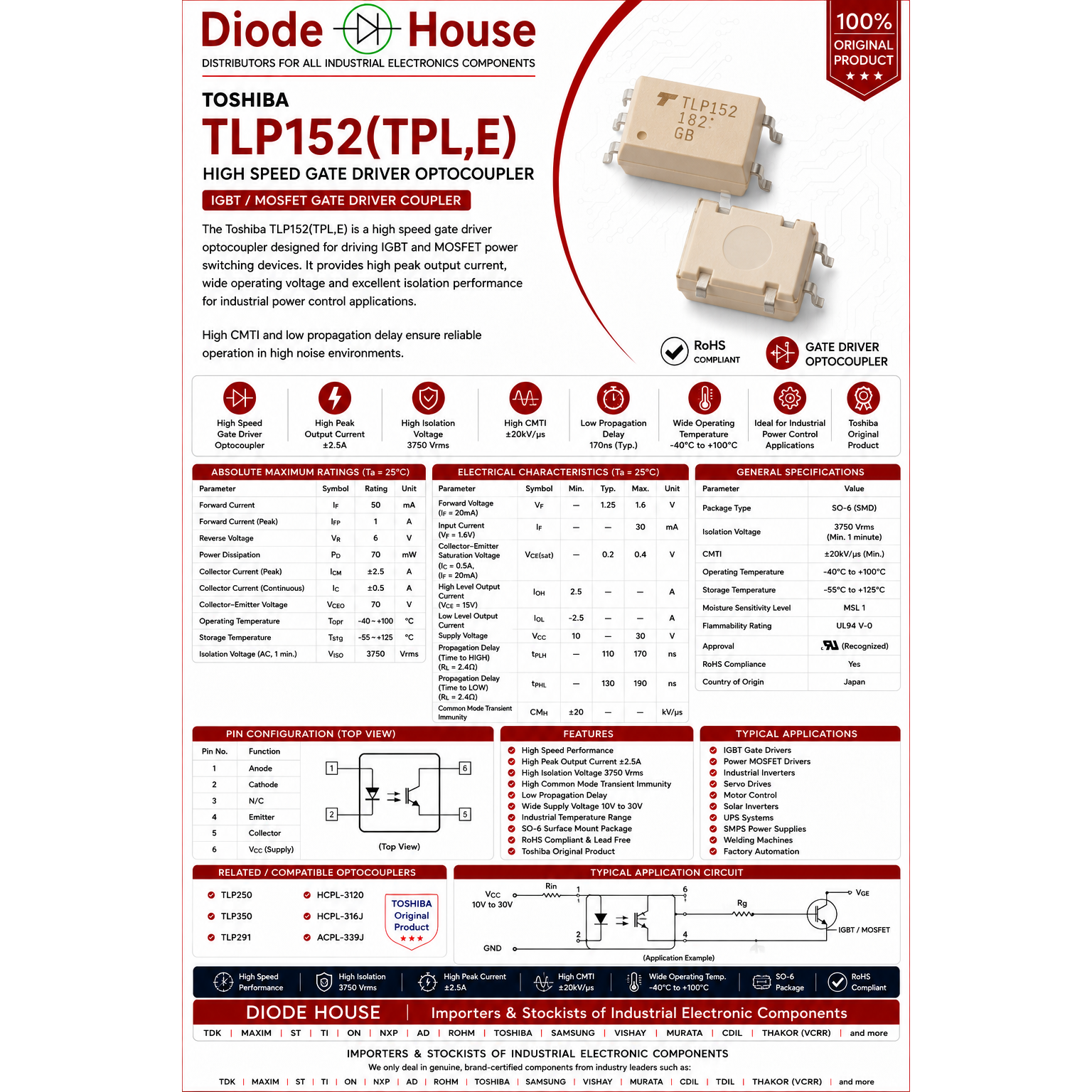

• Manufacturer: Toshiba
• Part Number: TLP152(TPL, E)
• Package: SO-6 (Tape & Reel)
• Packing Quantity: 3, 000 pcs/reel
• Lot No.: 8215A2F-5025
• RoHS: Compliant
• UL Recognized: Yes
Key Specifications:
• High-speed IGBT/MOSFET Gate Driver Optocoupler
• Supply Voltage: 10V to 30V
• Output Peak Current: ±2.5A
• Isolation Voltage: 3750Vrms (min)
• Common Mode Transient Immunity (CMTI): ±20kV/µs
• Propagation Delay:
o tPLH: 170ns (max)
o tPHL: 190ns (max)
• Operating Temperature: -40°C to +100°C
Typical Applications:
• IGBT Gate Drivers
• Power MOSFET Drivers
• Industrial Inverters
• Servo Drives
• Motor Control
• UPS Systems
• Solar Inverters
• SMPS Power Supplies
