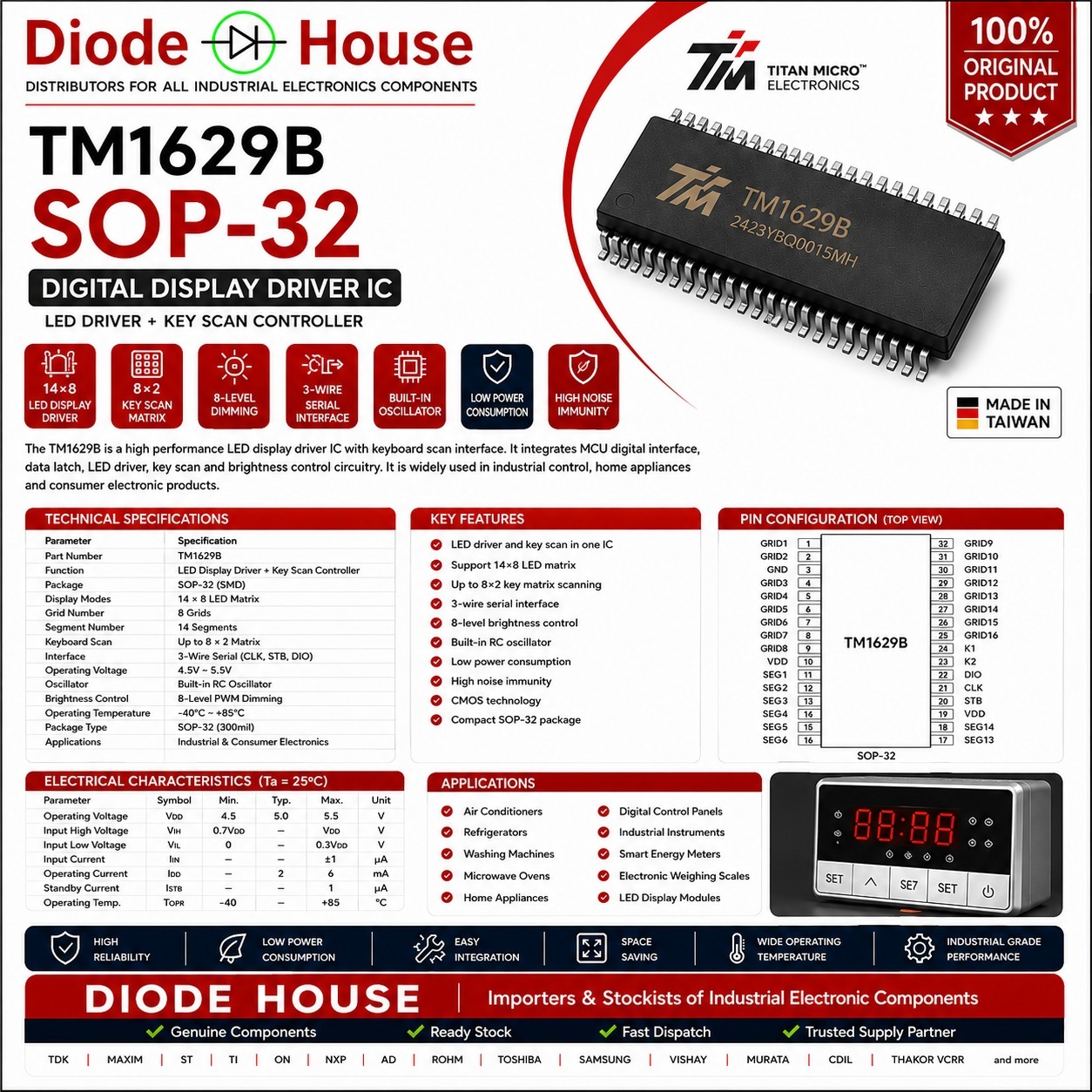

The TM1629B is a high-performance LED display driver IC designed for driving multi-segment LED displays with an integrated keyboard scan interface. It incorporates an MCU serial interface, data latch, LED driver circuitry, brightness control, and key scanning, making it suitable for household appliances and industrial display panels. It is available in the SOP-32 SMD package.
Key Features
• Display Mode: 14 Segments × 8 Digits
• Package: SOP-32 (SMD)
• Serial Interface: CLK, STB, DIO
• Integrated 8 × 2 Key Scan
• 8-Level Brightness Control
• Built-in Power-On Reset
• Internal RC Oscillator
• Operating Voltage: 4.5V to 5.5V
• CMOS Technology
• Low Power Consumption
• High Noise Immunity
Applications
• Air Conditioners
• Refrigerators
• Washing Machines
• Microwave Ovens
• Home Theatre Systems
• Digital Control Panels
• Industrial Instruments
• Smart Energy Meters
• Electronic Weighing Scales
• LED Display Modules
Technical Specifications
Parameter Value
IC Type LED Display Driver
Display Configuration 14 Segment × 8 Digit
Interface 3-Wire Serial (CLK, STB, DIO)
Keyboard Scan 8 × 2 Matrix
Brightness Levels 8
Operating Voltage 4.5V – 5.5V
Package SOP-32 SMD
Mounting Type Surface Mount
