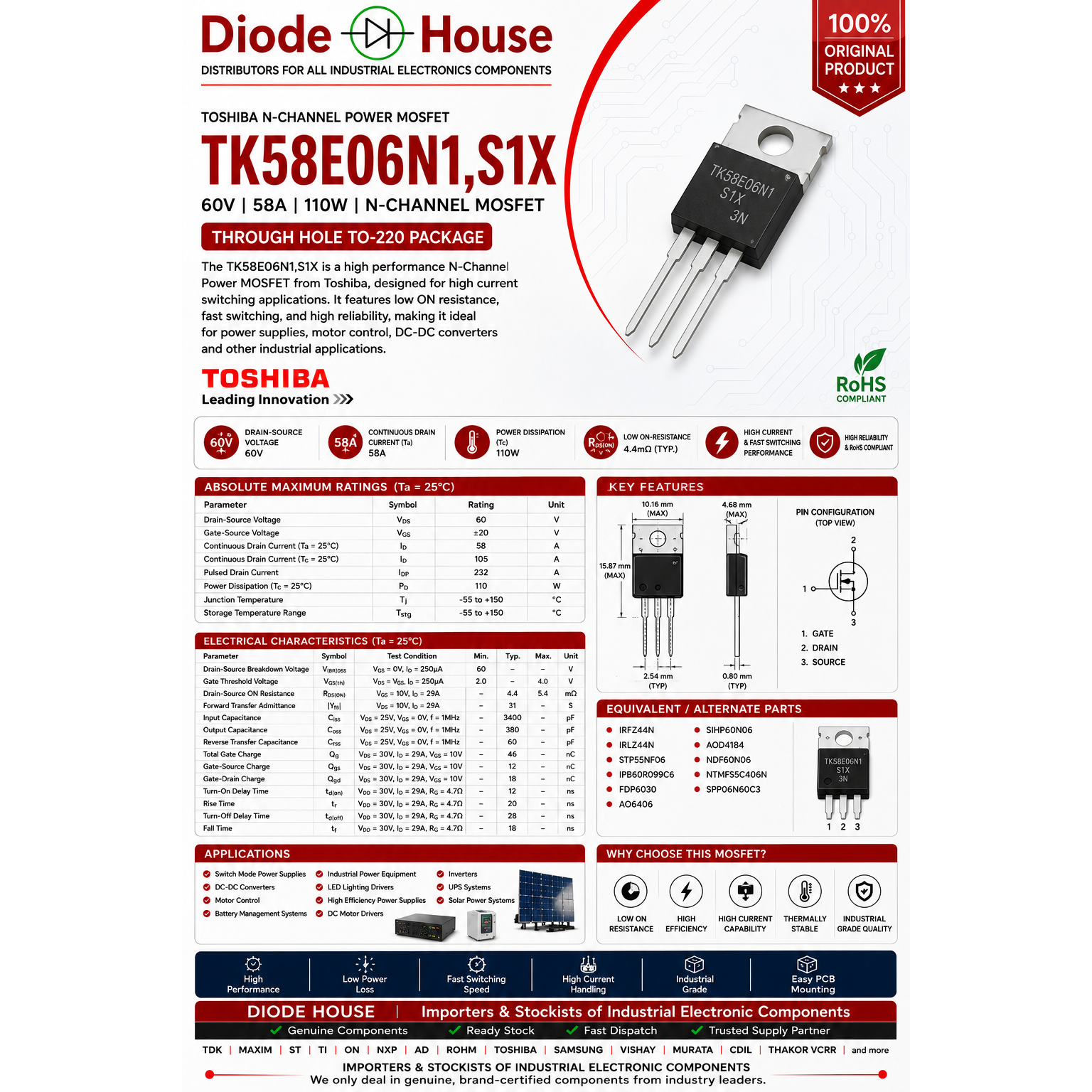

TK58E06N1 S1X Toshiba N Channel Power MOSFET is a high-performance power transistor designed for switching power supplies, DC-DC converters, motor drives, battery management systems and industrial power electronics. It offers low RDS ON, high current handling capability and excellent switching efficiency for reliable operation.
Product Features
• Genuine Toshiba MOSFET
• N Channel Enhancement Mode
• Drain Source Voltage 60V
• Continuous Drain Current 105A
• Power Dissipation 110W
• Low RDS ON 5.4mΩ Maximum
• Total Gate Charge 46nC
• Through Hole TO220 Package
• RoHS Compliant
Technical Specifications
• Manufacturer : Toshiba
• Part Number : TK58E06N1 S1X
• Device Type : Power MOSFET
• Channel : N Channel
• Drain Source Voltage : 60V
• Continuous Drain Current : 105A
• Power Dissipation : 110W
• RDS ON : 5.4mΩ Max
• Gate Charge : 46nC
• Package : TO220
• Mounting Type : Through Hole
• Operating Temperature : Up to 150°C
The specifications above align with Toshiba's published product information.
Applications
• SMPS
• Switching Power Supplies
• DC DC Converters
• Battery Chargers
• Motor Controllers
• Solar Inverters
• UPS Systems
• Industrial Power Supplies
• Automotive Electronics
• High Current Switching
Why Buy From Diode House
• Genuine Industrial Electronic Components
• Ready Stock for Fast Delivery
• Bulk Quantity Supply
• Technical Support Available
• Datasheet Available on Request
• Wholesale Supply Across India
________________________________________
Search Keywords (SEO)
TK58E06N1 S1X
TK58E06N1 Toshiba
Toshiba MOSFET
60V MOSFET
105A MOSFET
TO220 MOSFET
N Channel MOSFET
Power MOSFET
Industrial MOSFET
Switching MOSFET
SMPS MOSFET
DC DC Converter MOSFET
Motor Drive MOSFET
________________________________________
Field Value
Brand Toshiba
Part Number TK58E06N1 S1X
Product Type Power MOSFET
Channel N Channel
Drain Source Voltage 60V
Continuous Drain Current 105A
Power Dissipation 110W
Package TO220
Mounting Type Through Hole
RDS ON 5.4mΩ Max
Gate Charge 46nC
Application SMPS Motor Drive DC DC Converter Industrial Electronics
Country of Origin Japan / As per Manufacturer
