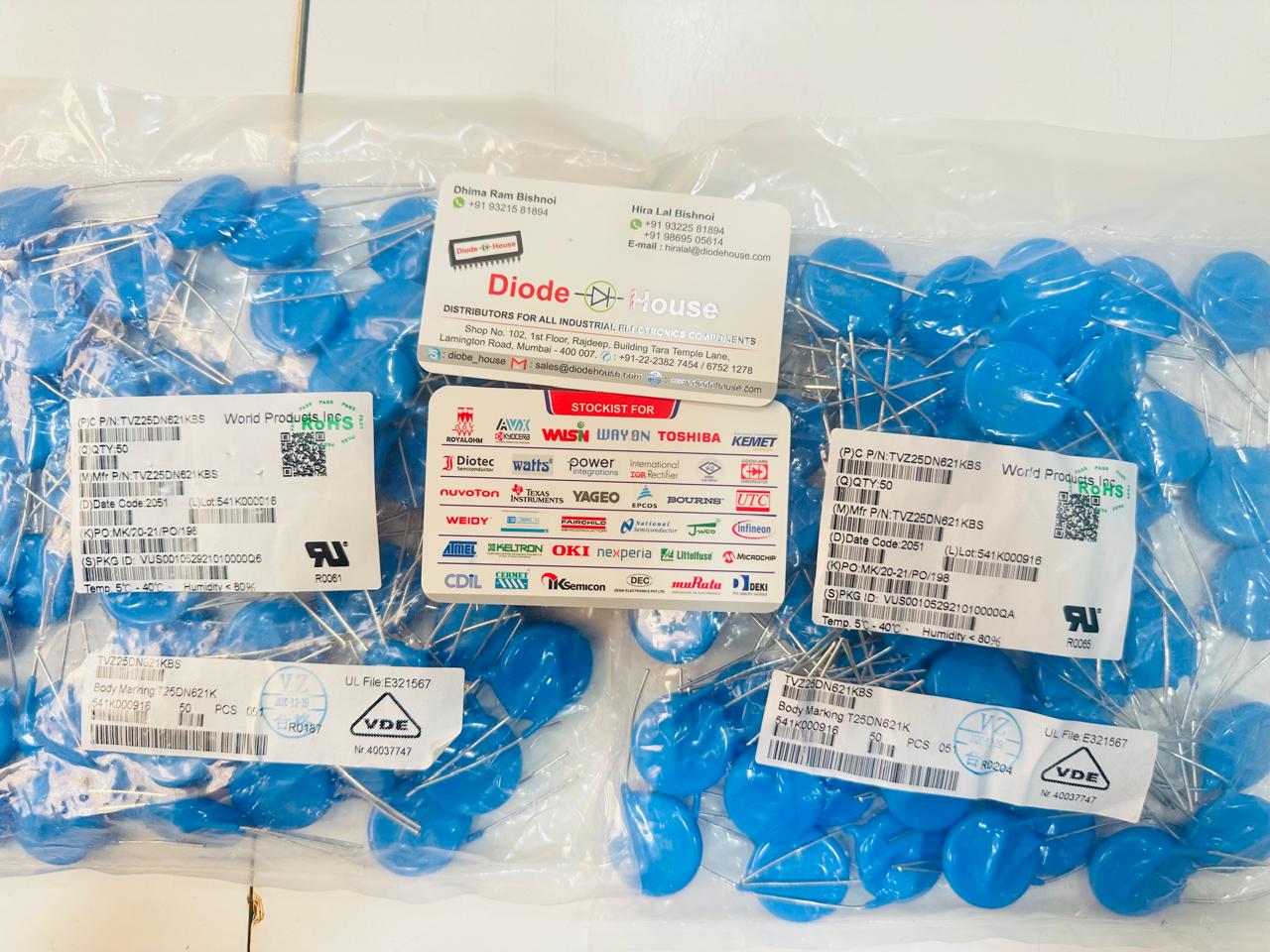

The TVZ25DN621KBS is a Metal Oxide Varistor (MOV) from World Products Inc.
Key Specifications:
1. Type: Metal Oxide Varistor (MOV)
2. Voltage Rating (Vrms): 250V
3. Surge Current Rating (Ipp): 6kA (8/20μs)
4. Energy Absorption: 250J (1.2/50μs)
5. Clamping Voltage (Vc): 375V (max)
6. Response Time: <1ns
7. Operating Temperature: -40°C to 85°C
8. Package: Disk, 20mm (0.79in) diameter
Features:
1. High surge current capability
2. Fast response time
3. Low leakage current
4. High energy absorption
5. Compact design
6. RoHS compliant
Applications:
1. Transient voltage suppression
2. Overvoltage protection (OVP)
3. Lightning protection
4. Surge protection (SPD)
5. Power supply protection
6. Industrial control systems
7. Automotive electronics
Standards Compliance:
1. IEC 61000-4-2 (Electromagnetic Compatibility)
2. UL 497B (Surge Protective Devices)
3. RoHS compliant
Dimensions:
1. Diameter: 20mm (0.79in)
2. Thickness: 7.5mm (0.3in)
3. Lead Length: 25mm (0.98in)
Datasheet:
For detailed specifications, please refer to the World Products Inc. TVZ25DN621KBS datasheet.
Ordering Information:
To order or replace this MOV, ensure you have the following information:
1. Part number (TVZ25DN621KBS)
2. Quantity required
You can purchase World Products Inc. MOVs from authorized distributors, such as:
- Diode House
Equivalent Parts:
Some equivalent parts from other manufacturers are:
- Littelfuse V25DA620
- TE Connectivity 250V 6kA MOV
- Vishay General Semiconductor V25D620
