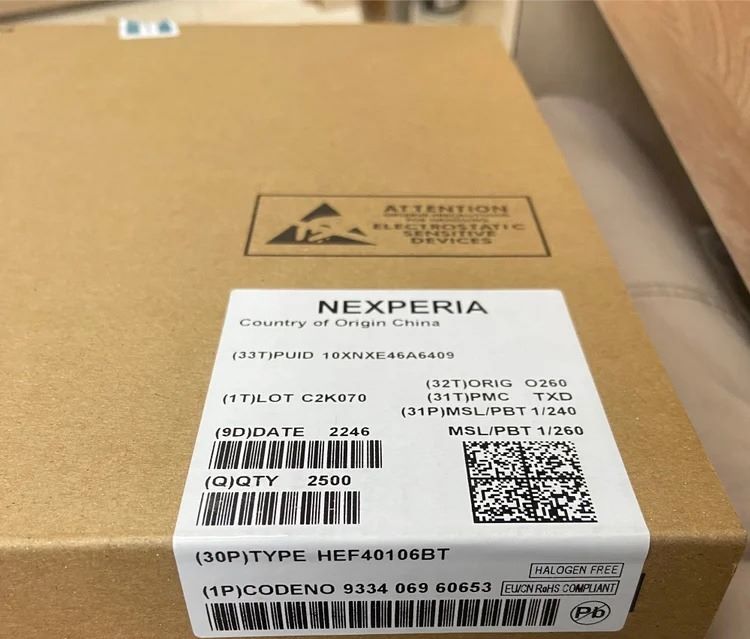

The HEF40106BT is a hex inverter integrated circuit from Nexperia. Key Specifications: 1. Type: Hex inverter 2. Logic Family: CMOS 3. Supply Voltage (Vdd): 4.5V to 15V 4. Operating Temperature: -40°C to 125°C 5. Package: SO14 (SOT108), 14-pin Features: 1. Six inverters with Schmitt trigger inputs 2. Low power consumption 3. High noise immunity 4. Wide operating temperature range 5. Compatible with TTL and CMOS logic 6. Symmetrical output impedance 7. Hysteresis voltage: 0.5V to 1.5V (typ) Applications: 1. Digital logic circuits 2. Signal inversion and buffering 3. Level shifting and translation 4. Industrial control systems 5. Automotive electronics 6. Medical devices 7. Consumer electronics Electrical Characteristics: 1. Propagation Delay (tpd): 20ns (typ) at 10V 2. Power Dissipation (Pd): 1μW (typ) at 5V 3. Input Current (Iin): 1μA (typ) at 5V 4. Output Current (Iout): 4mA (min) at 5V Standards Compliance: 1. IEC 60950-1 (Safety Requirements) 2. UL 94V-0 (Flammability Rating) 3. RoHS compliant Dimensions: 1. Length: 10.2mm (0.402in) 2. Width: 7.5mm (0.295in) 3. Height: 2.45mm (0.096in) 4. Pitch: 1.27mm (0.05in) Datasheet: For detailed specifications, please refer to the Nexperia HEF40106BT datasheet. Ordering Information: To order or replace this IC, ensure you have the following information: 1. Part number (HEF40106BT) 2. Quantity required You can purchase Nexperia ICs from authorized distributors, such as: - Diode House Equivalent Parts: Some equivalent parts from other manufacturers are: - Texas Instruments CD40106BE - ON Semiconductor MC14006B - STMicroelectronics 40106B Pin Configuration: | Pin | Function | | --- | --- | | 1 | 1A | | 2 | 1Y | | 3 | 2A | | 4 | 2Y | | 5 | 3A | | 6 | 3Y | | 7 | 4A | | 8 | 4Y | | 9 | 5A | | 10 | 5Y | | 11 | 6A | | 12 | 6Y | | 13 | GND | | 14 | Vdd | Would you like more information or have specific questions about this inverter?
