The starpower gd15pjy120l2s is a high-performance igbt power module designed for industrial power conversion applications. It features a robust housing with integrated pin terminals, suitable for motor drives, inverters, and renewable energy systems.

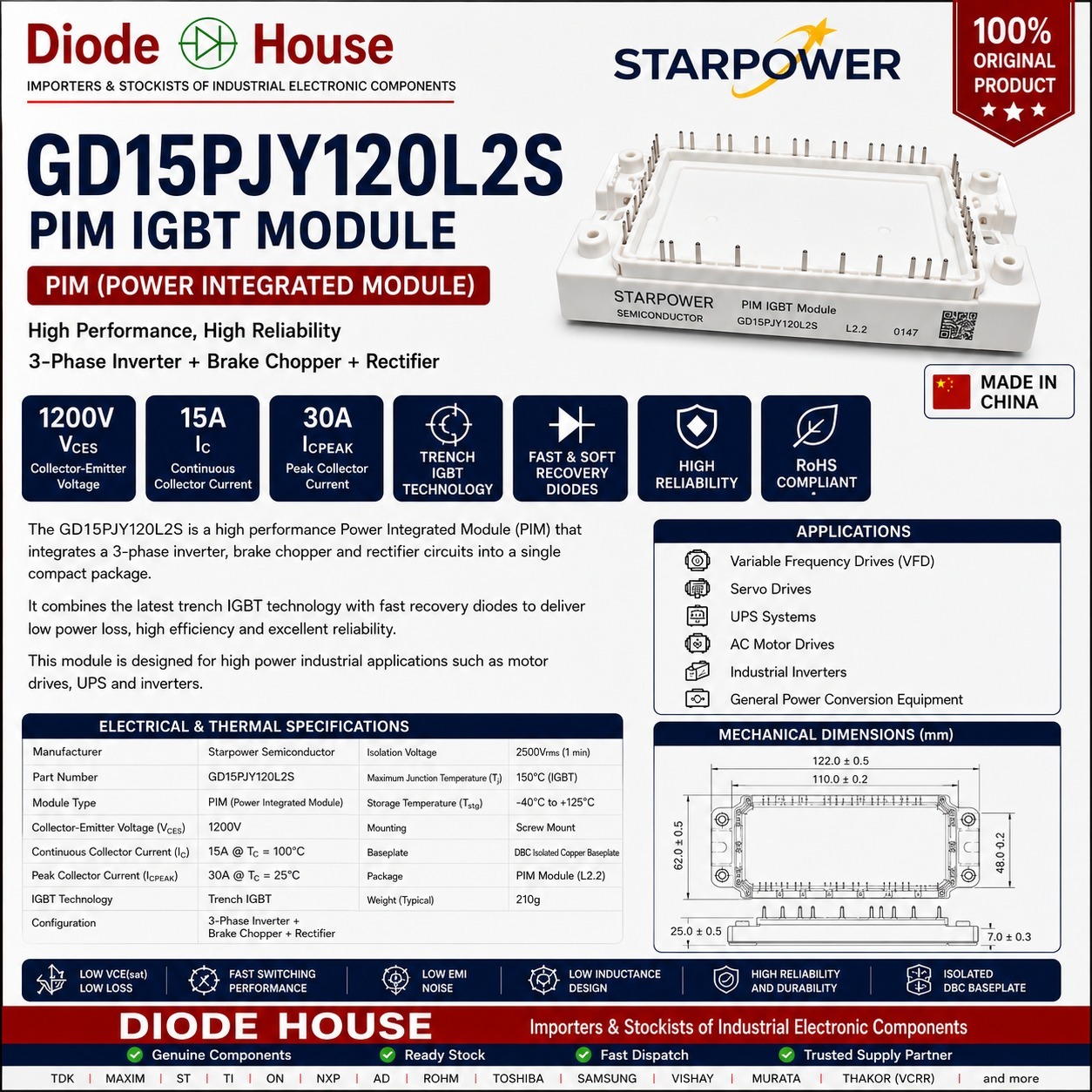

STARPOWER GD15PJY120L2S IGBT Power Module
The GD15PJY120L2S is a compact 1200V / 15A Intelligent Power Module (PIM) from STARPOWER. It integrates a three-phase IGBT inverter, three-phase rectifier, brake chopper IGBT, brake diode, and an NTC temperature sensor in a single package, making it suitable for low-power industrial motor drives and inverter applications.
Key Specifications
Parameter Specification
Manufacturer STARPOWER
Part Number GD15PJY120L2S
IGBT Technology Trench Field Stop
Collector-Emitter Voltage (VCES) 1200 V
Continuous Collector Current 15 A @ Tc=100°C
Peak Collector Current 30 A
Gate-Emitter Voltage ±20 V
Power Dissipation 173 W
Isolation Voltage 2500 Vrms
Junction Temperature -40°C to +150°C (IGBT operating)
Package L2.2
Mounting Screw mount with PCB pins
Built-in Sensor NTC Thermistor
Internal Configuration
• ✔ Three-phase diode bridge rectifier
• ✔ Three-phase IGBT inverter
• ✔ Brake chopper IGBT
• ✔ Freewheel diodes
• ✔ NTC temperature sensor
This high level of integration reduces PCB size and simplifies inverter design.
Typical Applications
• AC Motor Drives
• Servo Drives
• Industrial Inverters
• UPS Systems
• Variable Frequency Drives (VFD)
• Power Supplies
Equivalent / Replacement
The GD15PJY120L2S is commonly used as a replacement for the Infineon FP15R12W1T4, provided the pinout and mechanical dimensions match the target design.
