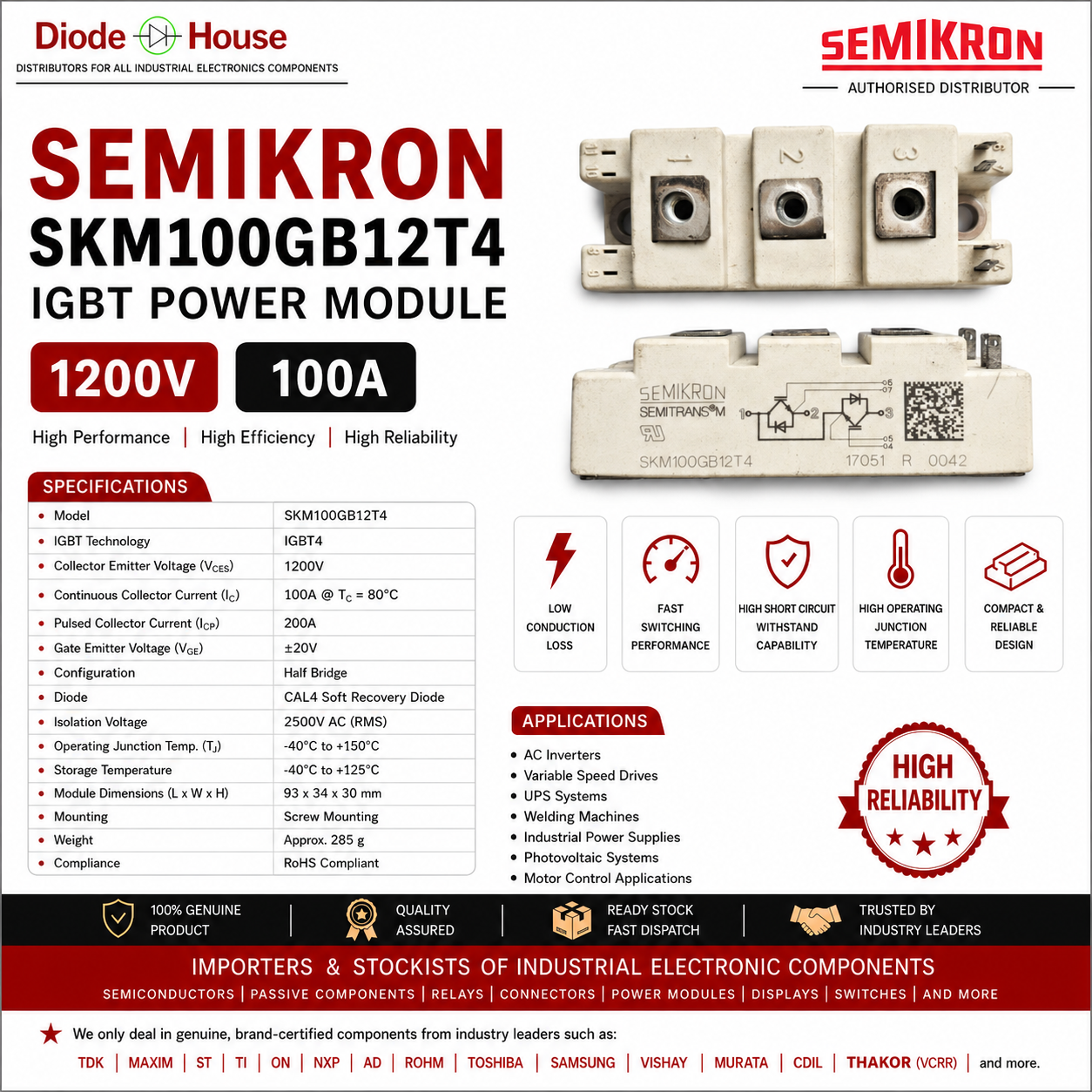

Semikron Danfoss SKM100GB12T4 is a 1200 V, 100 A nominal IGBT4 Fast Trench half-bridge module from the SEMITRANS 2 family. It is currently listed by Semikron Danfoss as In Production.
Key Specifications
• Part Number: SKM100GB12T4
• Manufacturer: Semikron Danfoss
• Technology: IGBT4 Fast Trench
• Topology: Half Bridge
• VCE: 1200 V
• Nominal Collector Current: 100 A
• Continuous Collector Current: up to 160 A depending on operating conditions
• Housing: SEMITRANS 2
• Dimensions: 94 × 34 × 30 mm
• Integrated Gate Resistor: Yes
• Diode: CAL4 soft-switching diode
• Switching Frequency: suitable for applications up to 20 kHz
• Typical Applications: AC inverter drives, UPS and electronic welding equipment.
