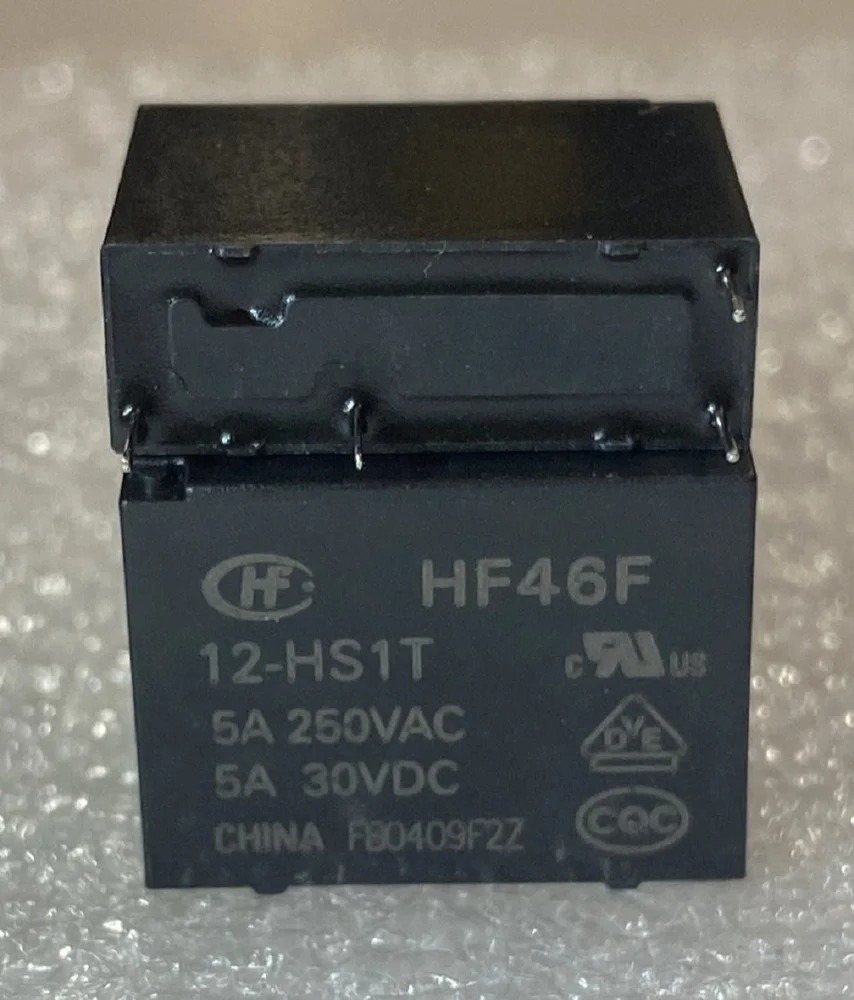

HF46F/12-HS1T – 12V 5A SPST PCB Mount Relay – Hongfa HF46F/12-HS1T – 12V 5A SPST PCB Mount Relay – Hongfa is an electrically operated switch. It consists of a set of input terminals for single or multiple control signals and a set of operating contact terminals. The switch may have any number of contacts in multiple contact forms, such as making contacts, breaking contacts or combinations thereof. Relays are the most commonly used switching devices in electronics. There are two important parameters of the relay, first is the Trigger Voltage, this is the voltage required to turn on the relay that is to change the contact from Common → NO. Tags, 5V Hongfa Relay, 5V 10A Relay, 5V PCB Mount Relay, 5V SPST Relay, SPST 5V Hongfa Relay, SPST 7A Relay, 5V SPST Hongfa Relay, HF46F-G 5-HS1T, HF46F-G-5-HS1T, HF46F/12-HS1, HF46F-G/012-HS1T, Hongfa HF46F/12-HS1T. Feature/Specs: Manufacturer Part No: HF46F/12-HS1T Manufacturer: Hongfa Relay Contacts ConfigurationL SPST-NO Rated Coil Voltage: 12VDC Contact Current: 5A AC Contacts Rating: 5A / 250VAC DC Contacts Rating: 5A / 30V DC Switched Voltage: 30VDC, 277VAC Max Coil Resistance: 720Ω Coil Voltage Range: 9V ~ 1.56VDC Operate Time: 10ms Release time: 10ms Contact resistance: 100mΩ Contact material: AgSnO2 Coil power consumption: 200mW Operating temperature: -40 ~ 85°C Mounting: PCB Length: 20.5 mm Width: 7.2 mm Height: 15.3 mm Weight: 3 gm Application: Industrial General Purpose Relay
