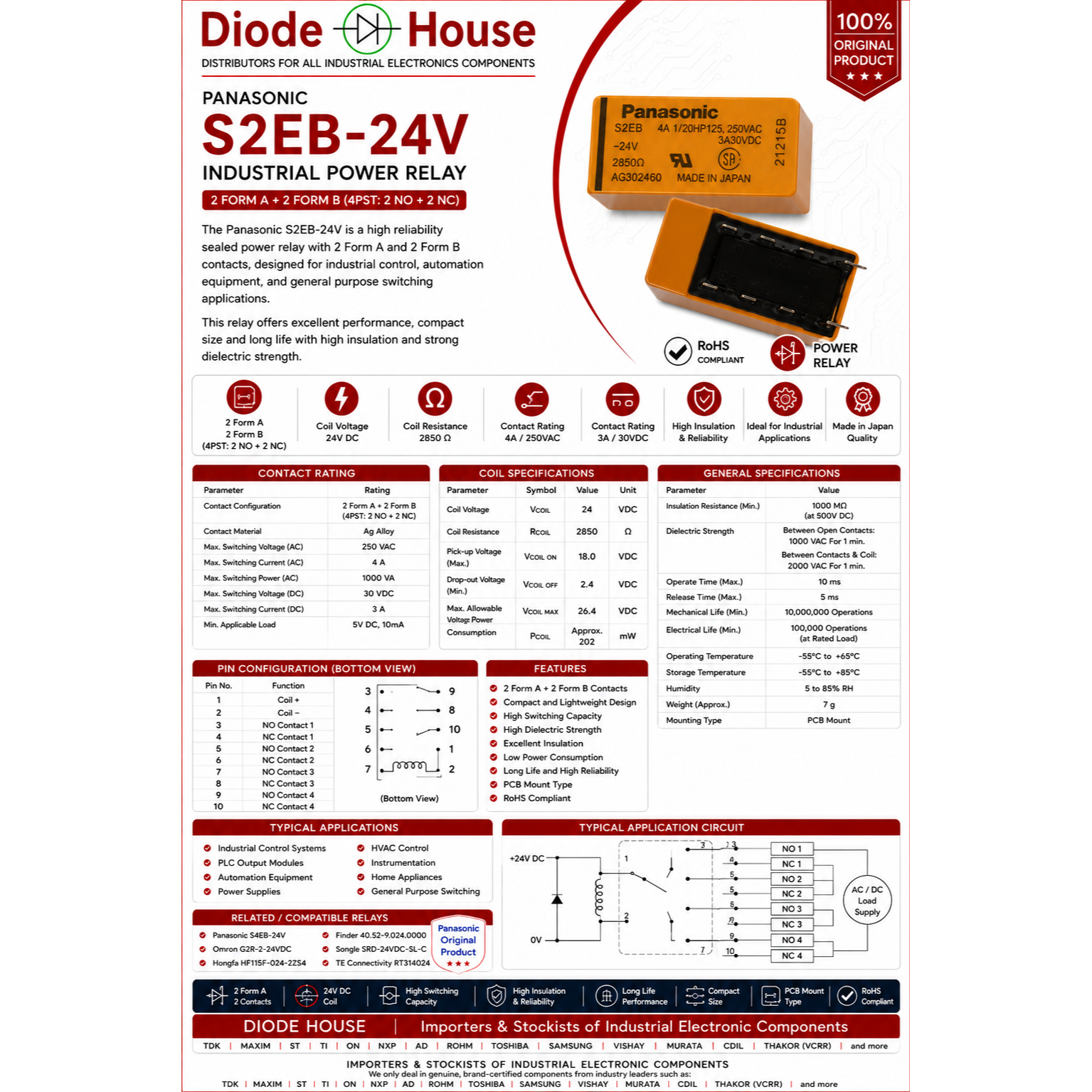

Panasonic S2EB-24V Industrial Relay
Specifications
Parameter Details
Manufacturer Panasonic
Model S2EB-24V
Relay Type Electromechanical PCB Relay
Coil Voltage 24 VDC
Coil Resistance 2, 850 Ω
Coil Power 202 mW
Contact Configuration 2 Form A + 2 Form B (4PST: 2NO + 2NC)
Contact Rating 4 A @ 250 VAC
DC Rating 3 A @ 30 VDC
Maximum Switching Voltage 250 VAC / 48 VDC
Mounting Through-Hole PCB
Construction Fully Sealed
Operating Temperature -55°C to +65°C
Country of Origin Made in Japan
These specifications match Panasonic's published product information.
Applications
• Industrial Control Equipment
• PLC Systems
• Power Supplies
• Automation Panels
• Test & Measurement Instruments
• Medical Equipment
• Communication Equipment
