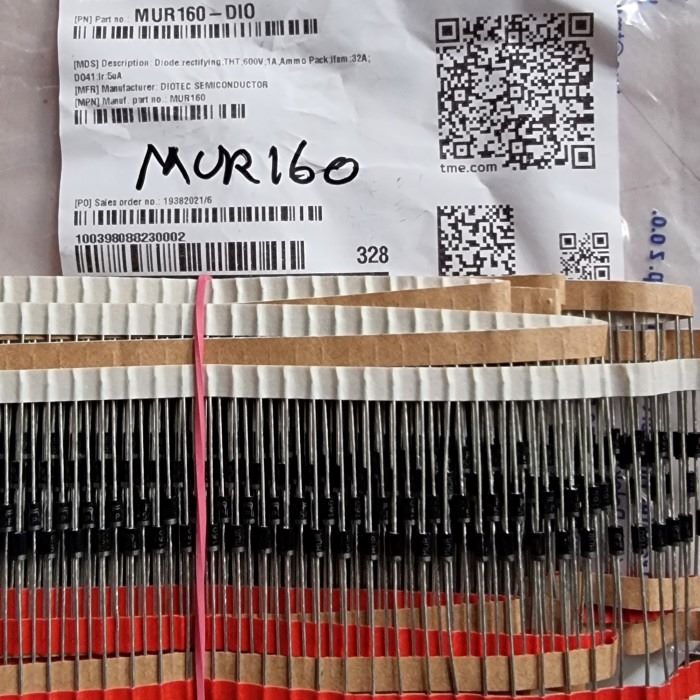

MUR160 – 600V 1A Fast Recovery Rectifier Diode – DO-41 Package The MUR160 is a Fast Diode with a molded plastic case and lead-free solderable pure tin-plated terminals as per MIL-STD-202 standards. It is designed for use in switching power supplies, inverters, and as free-wheeling diodes. Tags, MUR160S, MUR160G, MUR160RLG, MUR160A, MUR160A R0, MUR160 R0, MUR160-T, MUR160H. Features: Glass Passivated Die Construction Super-Fast Recovery Time For High Efficiency Low Forward Voltage Drop and High Current Capability Surge Overload Rating to 35A Peak Ideally Suited for Automated Assembly Features/Specs: Manufacturer: MUR160 HB Manufacturer: Hornby Electronic Series: MUR160 Reverse Voltage: 600V Forward Current: 1A Diode Type: Fast Recovery Rectifiers Configuration: Single Forward Voltage: 1.25V Max Surge Current: 35A Reverse Current: 5uA Recovery Time: 75ns Operating Temperature Range: -65°C ~ +175°C Mounting Style: Through Hole Package/Case: DO-41 MUR160 Super Fast Rectifier Diode Features of MUR160 Super Fast Rectifier Diode Glass Passivated Die Construction Super-Fast Recovery Time For High Efficiency Low Forward Voltage Drop and High Current Capability Surge Overload Rating to 35A Peak Ideally Suited for Automated Assembly Lead Free Finish, RoHS Compliant Peak Repetitive Reverse Voltage VRRM 600 V Working Peak Reverse Voltage VRWM 600 V DC Blocking Voltage VR 600 V RMS Reverse Voltage VR (RMS) 424 V Average Rectified Output Current @ TT = 120
C IO 1.0 A Typical Junction Capacitance (Note 1) Cj 45 pF Typical Thermal Resistance, Junction to Ambient RJA 72 K/W Operating and Storage Temperature Range Tj, TSTG -65 to +175
C Mechanical Features of MUR160 Super Fast Rectifier Diode Case : DO-41 Case Material : Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity : Level 1 per J-STD-020C Terminals : Finish  Bright Tin. Solderable per MIL-STD-202, Method 208 Marking : MUR160: R160 Polarity : Cathode Band Mounting Position : Any Weight : 0.35 grams
