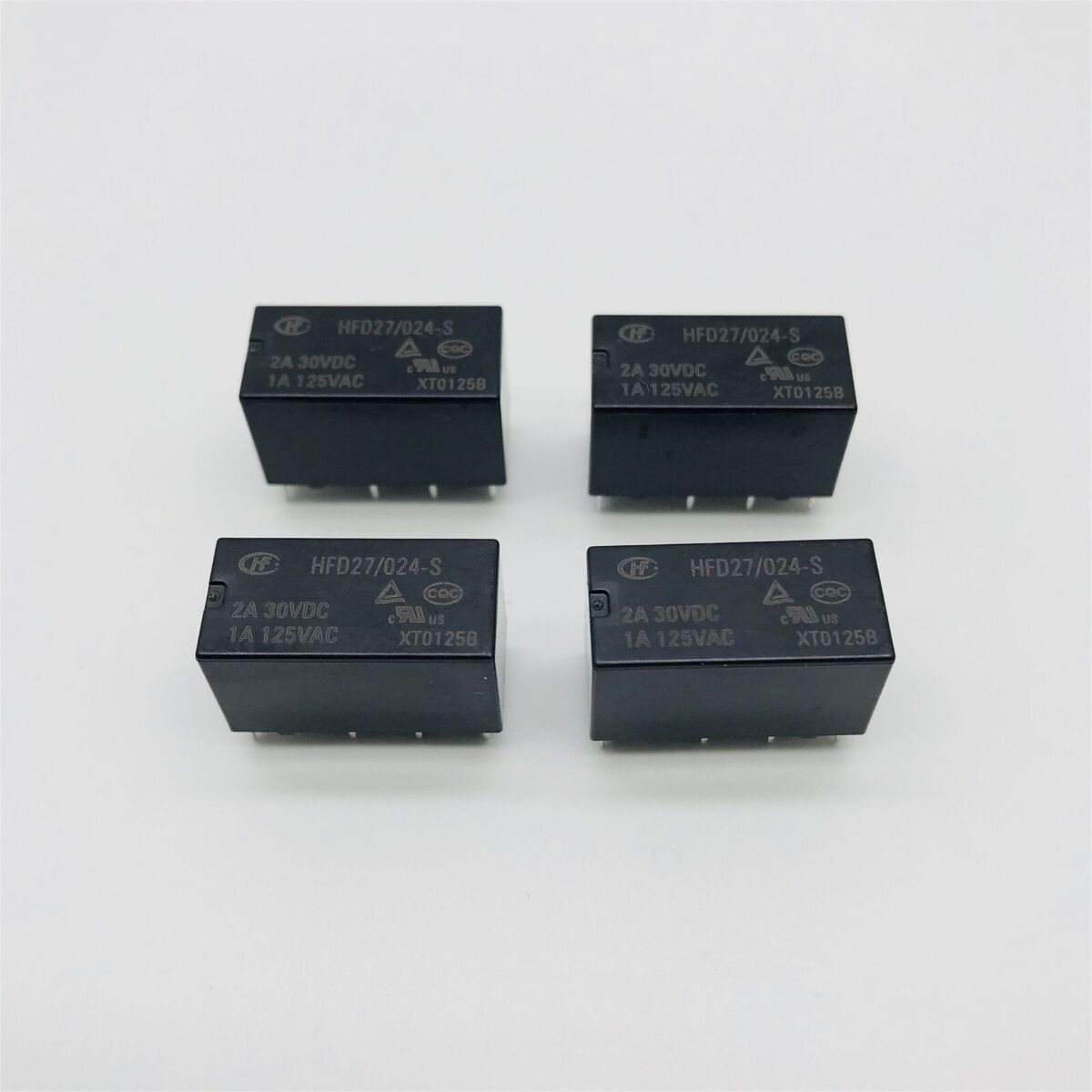

HFD27/024-S – 24V 2A PCB Mount Relay – Hongfa Hongfa HF32F 5VDC 3A SPDT Relay is an electrically operated switch. It consists of a set of input terminals for single or multiple control signals, and a set of operating contact terminals. The switch may have any number of contacts in multiple contact forms, such as making contacts, breaking contacts or combinations thereof. Relays are the most commonly used switching device in electronics. There are two important parameters of the relay, first is the Trigger Voltage, this is the voltage required to turn on the relay that is to change the contact from Common → NO. Tags, 24V Hongfa Relay, 24V 2A Relay, 24V PCB Mount Relay, 24V DPDT Relay, DPDT 24V Hongfa Relay, DPDT 2A Relay, 24V Hongfa Relay. Feature/Specs: Manufacturer Part No: HFD27/024-S Manufacturer: HONGFA RELAY Type of relay: Electromagnetic Contacts configuration: DPDT Rated coil voltage: 24VDC Contact current: 2A AC contacts rating @R (at resistive load): 1A/125VAC DC contacts rating @R (at resistive load): 2A/30VDC Switched Voltage: 120VDC, 240VAC Relay variant: Subminiature Mounting: PCB Coil Resistance: 2.88kΩ Coil voltage: 18VDC Coil voltage: 48VDC Operate time: 7ms Release time: 4ms Coil power consumption: 200mW Operating temperature: -40 ~ 85°C Contact resistance: 100mΩ Length: 20.2mm Width: 10 mm Height: 11.5 mm Approx Weight: 15 gm Application: Industrial General Purpose Relay
