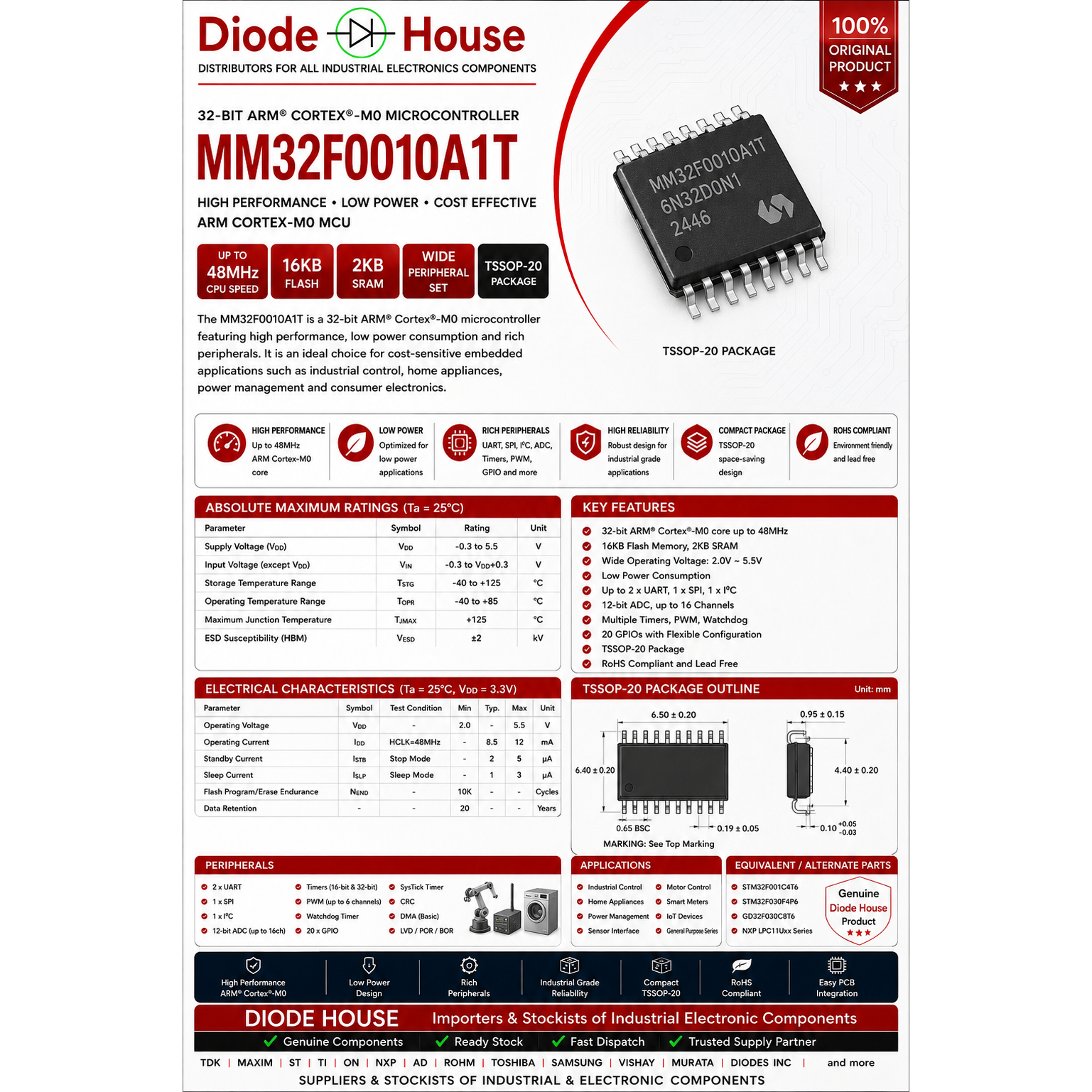

MM32F0010A1T is a high-performance 32-bit microcontroller based on the ARM Cortex-M0 core from MindMotion. It operates at up to 48MHz and integrates 16KB Flash memory, 2KB SRAM, multiple communication interfaces, timers, and a 12-bit ADC. The device is designed for cost-sensitive embedded applications requiring reliable performance and low power consumption.
Features:
• ARM Cortex-M0 32-bit CPU
• Operating frequency up to 48MHz
• 16KB Flash Memory
• 2KB SRAM
• 12-bit ADC with up to 8 channels
• 2 UART interfaces
• 1 SPI interface
• 1 I2C interface
• Advanced, General Purpose and Basic Timers
• Wide operating voltage: 2.0V to 5.5V
• Low power Sleep and Standby modes
• Operating temperature: -40°C to +85°C
• TSSOP-20 Package
Applications:
• Industrial Control Systems
• Consumer Electronics
• Smart Home Devices
• Motor Control Applications
• Sensor Interface Modules
• Battery Management Systems
• Communication Modules
• Home Appliances
Brand: MindMotion
Part Number: MM32F0010A1T
Package: TSSOP-20
Mounting Type: Surface Mount (SMD)
