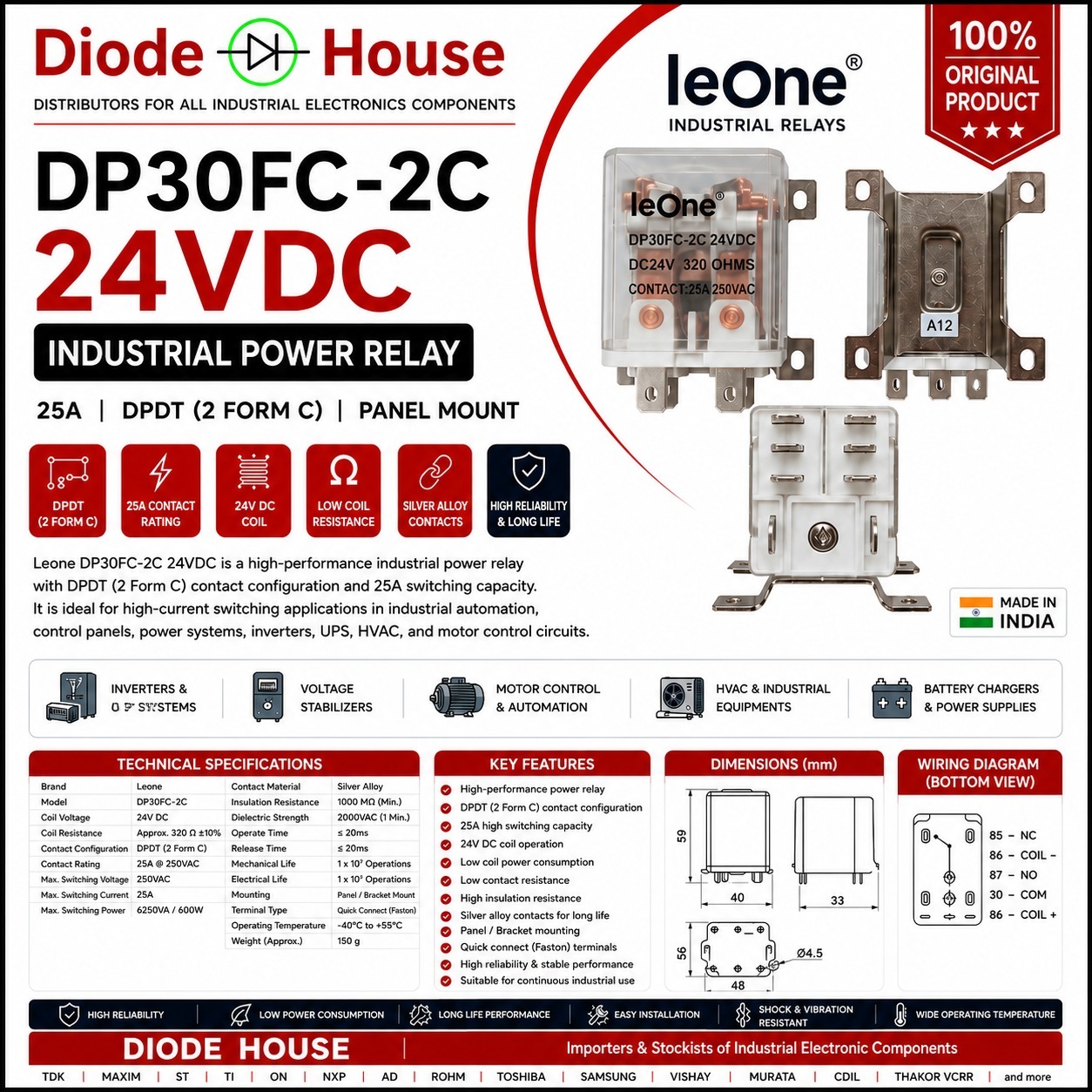

The Leone DP30FC-2C 24VDC Power Relay is a heavy-duty industrial relay designed for reliable switching of high-current loads. It features a 24V DC coil, 2 Changeover (DPDT) contacts, and a 25A contact rating, making it suitable for demanding industrial and power control applications. Manufactured with silver alloy contacts for long electrical life and stable performance.
Key Specifications
• Brand: Leone
• Model: DP30FC-2C
• Coil Voltage: 24V DC
• Contact Configuration: 2C (DPDT / 2 Changeover)
• Contact Rating: 25A @ 250VAC
• Coil Resistance: Approximately 320–350 Ω (varies by version)
• Contact Material: Silver Alloy (Ag Alloy)
• Mounting Type: PCB / Chassis Mount
• Terminal Type: Solder
• Operating Temperature: -40°C to +55°C
• Applications: Inverters, Voltage Stabilizers, Phase Changers, Motor Controllers, HVAC Equipment, Street Lighting, Industrial Control Panels and High-Power Switching.
Features
• 24V DC Coil
• 2 Changeover (DPDT) Contacts
• High Switching Capacity up to 25A
• Silver Alloy Contacts
• Long Mechanical & Electrical Life
• Reliable Performance for Industrial Applications
• Easy PCB/Chassis Mount Installation
