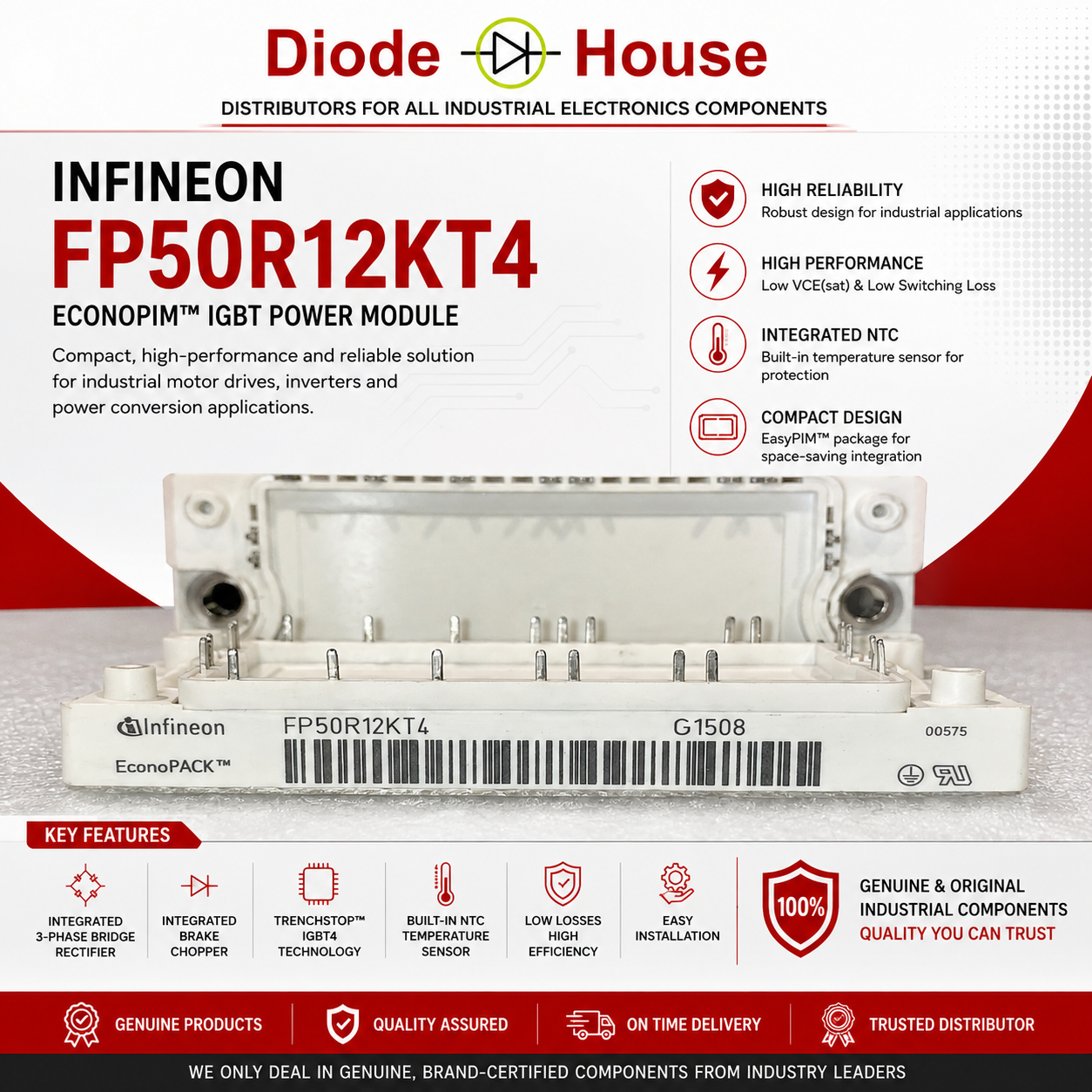

This Infineon EconoPACK FP50R12KT4 is a high-performance IGBT power module designed for industrial motor drives and power conversion applications. It features a robust design with integrated pins for reliable electrical connectivity in demanding power electronics systems.
Infineon FP50R12KT4 IGBT Power Module
The Infineon FP50R12KT4 is a 1200V, 50A EconoPIM™ 2 IGBT Power Module designed for industrial motor drives, HVAC systems, inverters, and servo applications. It integrates a three-phase rectifier, inverter, brake chopper, and NTC temperature sensor into a single compact module.
Key Specifications
Parameter Value
Manufacturer Infineon
Part Number FP50R12KT4
Module Type EconoPIM™ 2
IGBT Technology TRENCHSTOP™ IGBT4
Collector-Emitter Voltage (VCES) 1200 V
Continuous Collector Current 50 A
Peak Collector Current 100 A
Configuration 3-Phase PIM (Rectifier + Inverter + Brake Chopper)
VCE(sat) (Typ.) 1.85 V
Operating Junction Temperature -40°C to +150°C
Isolation Voltage 2.5 kV RMS
Temperature Sensor Integrated NTC
Mounting Screw Mount
Features
• 1200V / 50A Industrial IGBT Module
• Integrated 3-Phase Bridge Rectifier
• Integrated Brake Chopper
• Fast TRENCHSTOP™ IGBT4 Technology
• Low Switching Losses
• Copper Baseplate
• Built-in NTC Temperature Sensor
• High Reliability for Industrial Drives
• RoHS Compliant
Typical Applications
• AC Motor Drives
• VFD (Variable Frequency Drives)
• Servo Drives
• Industrial Inverters
• HVAC Systems
• UPS Systems
• Renewable Energy Power Converters
