The Infineon FP15R12W1T4 is a high-performance EasyPIM IGBT module designed for efficient power conversion in industrial drives and motor control applications. It features integrated power electronics in a compact, reliable package.

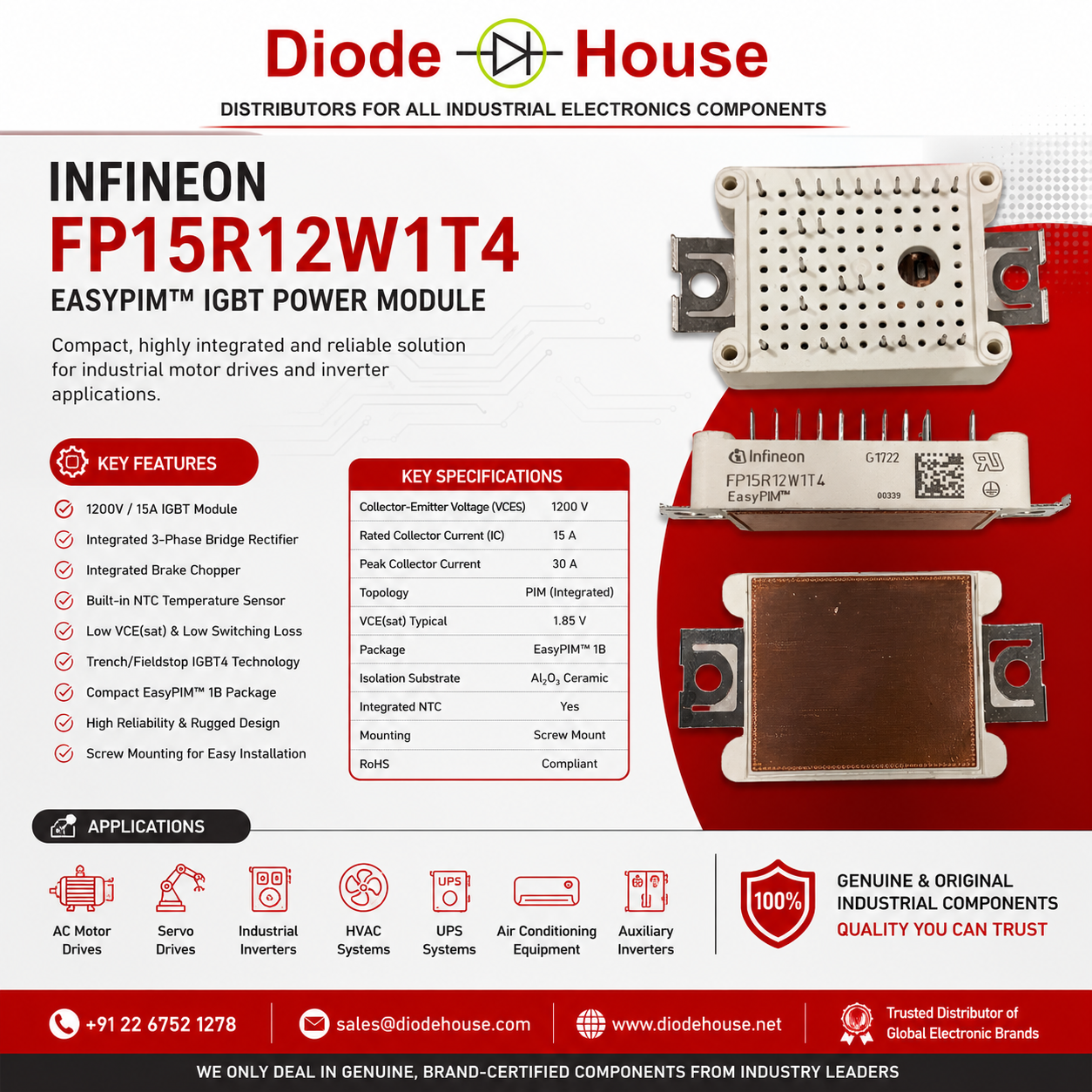

Infineon FP15R12W1T4 EasyPIM IGBT Power Module
The Infineon FP15R12W1T4 is a compact EasyPIM™ 1B intelligent power module designed for 3-phase inverter and motor drive applications. It integrates TRENCHSTOP™ IGBT4, fast recovery diodes, a 3-phase input rectifier, and an NTC temperature sensor in a single package.
Key Specifications
Parameter Value
Manufacturer Infineon Technologies
Part Number FP15R12W1T4
Module Type EasyPIM™ IGBT Power Module
IGBT Technology TRENCHSTOP™ IGBT4
Configuration 3-Phase PIM (Power Integrated Module)
Collector-Emitter Voltage (VCES) 1200 V
Rated Collector Current (IC) 15 A
Peak Collector Current (ICRM) 30 A
VCE(sat) (Typical) 1.85 V @ 25°C
Diode Type Emitter Controlled Diode
Integrated NTC Yes
Package EasyPIM™ 1B
Dimensions 48 × 33.8 mm
Mounting Solder Contact
Operating Junction Temperature -40°C to +150°C
RoHS Yes
Applications
• Industrial Motor Drives
• Servo Drives
• HVAC Systems
• Residential Air Conditioners
• General Purpose Inverters
• Auxiliary Inverters
• Industrial Automation Equipment
Features
• 1200 V / 15 A IGBT Module
• Low switching losses
• Low VCE(sat)
• Positive temperature coefficient
• Integrated rectifier bridge
• Integrated NTC temperature sensor
• Compact EasyPIM™ package
• Al₂O₃ insulated substrate
• High reliability for industrial applications
