The Hongfa HF115FK/48-2Z4T is a high-performance 2 Form C (DPDT) power relay featuring 8A contact rating and 48V DC coil voltage. Designed for PCB mounting, it offers high insulation, long mechanical life, and reliable switching for industrial control, HVAC, and power supply applications.

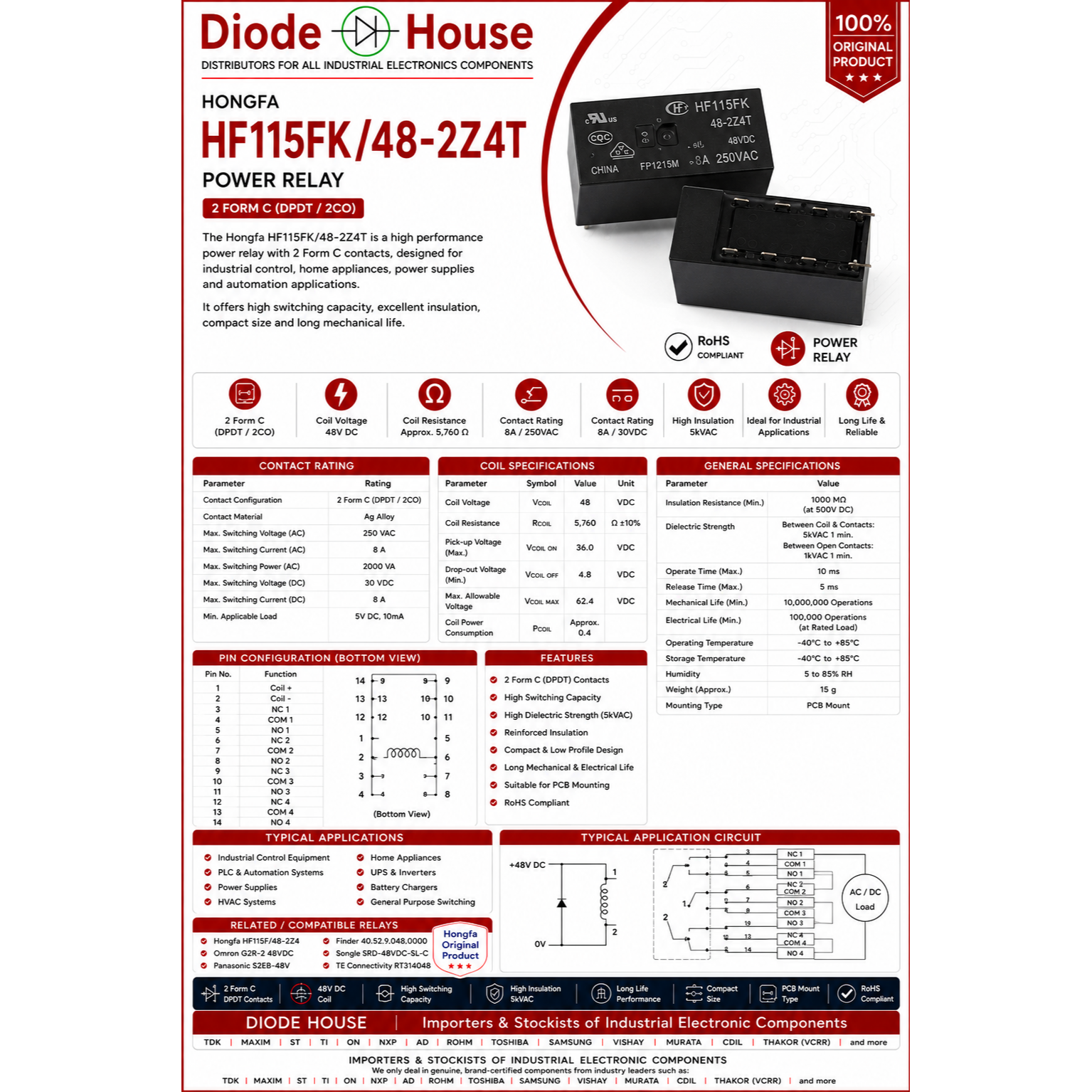

Hongfa HF115FK/48-2Z4T Power Relay
Manufacturer: Hongfa
Part Number: HF115FK/48-2Z4T
Key Specifications
Relay Type: PCB Power Relay
Coil Voltage: 48 VDC
Contact Configuration: 2 Form C (DPDT / 2CO)
Contact Rating: 8A @ 250VAC (Resistive Load)
Coil Power: Approx. 0.4W
Mounting Type: Through-Hole (THT/PCB)
Dielectric Strength: 5kVAC (Coil to Contacts)
Operating Temperature: -40°C to +85°C
Dimensions: Approximately 29.0 × 12.7 × 15.7 mm
Applications
Industrial Control Equipment
PLCs
Power Supplies
HVAC Systems
Home Appliances
UPS & Inverters
Automation Panels
Battery Charging Systems
Features
Compact low-profile design
High insulation (5kVAC)
Reinforced insulation
Long mechanical life
RoHS compliant
Suitable for PCB mounting
