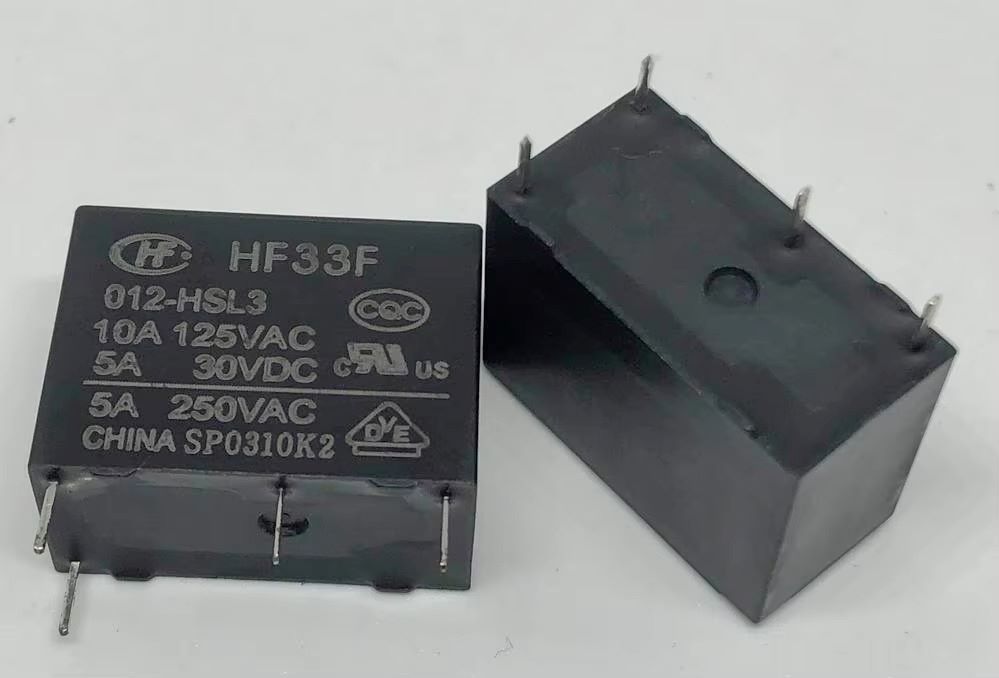

HF33F/012-HSL3 – 12V 5A – 4-Pin SPST Relay PCB Mount – Hongfa
HF33F012-HSL3 12V 5A – 4Pin SPST Relay – Hongfa PCB Mount Miniature High Power Relay A relay is an electrically operated switch. It consists of a set of input terminals for single or multiple control signals, and a set of operating contact terminals. The switch may have any number of contacts in multiple contact forms, such as making contacts, break contacts or combinations thereof. Relays are the most commonly used switching device in electronics. This product is known as 12V Hongfa Relay, Hongfa Relay, 12V Miniature high power relay, 12V SPST Relay, 12V SPST Hongfa Relay, and Hongfa 12V 3A Relay, Hongfa 12V 5A DC HF33F/012-HS3 5-Pin SPST Miniature Power Relay.
Features:
Provide 5A 250VAC to meet 300000 switching capability specifications
Creepage distance: 8mm (coil & contacts)
Clearance distance: NO type 4.5mm, NC type 4mm
1 Form A、1 From B and 1 Form C configurations
Subminiature, standard PCB layout
Plastic sealed and flux-proofed types are available
UL insulation system: Class F available
Product in accordance to IEC 60335-1 available.
Feature/Specs:
Manufacturer : HONGFA
Model No: HF33F/012-HSL3
Contacts configuration: SPST-NO
Rated Coil Voltage: 12V DC
AC Contacts Rating: 5A/250VAC at Resistive Load
DC Contacts Rating: 5A/30VDC at Resistive Load
Switched Voltage: 30VDC, 250VAC Max
Relay Variant: Subminiature
Coil Resistance: 720Ω
Contact Resistance: 100mΩ
Coil Voltage Range: 9V ~ 18VDC
Operate Time: 8ms
Release Time: 5ms
Coil Power Consumption: 200mW
Operating Temperature: -40 ~ 70°C
Contact Material: AgNi
Terminal Pitch: 7.6 mm
No of Pin: 4Pin
Body dimensions: 20.5×15.3×10.2mm
Mounting: PCB
Mounting Style: Through Hole
Application:
Industrial
General Purpose Relay
