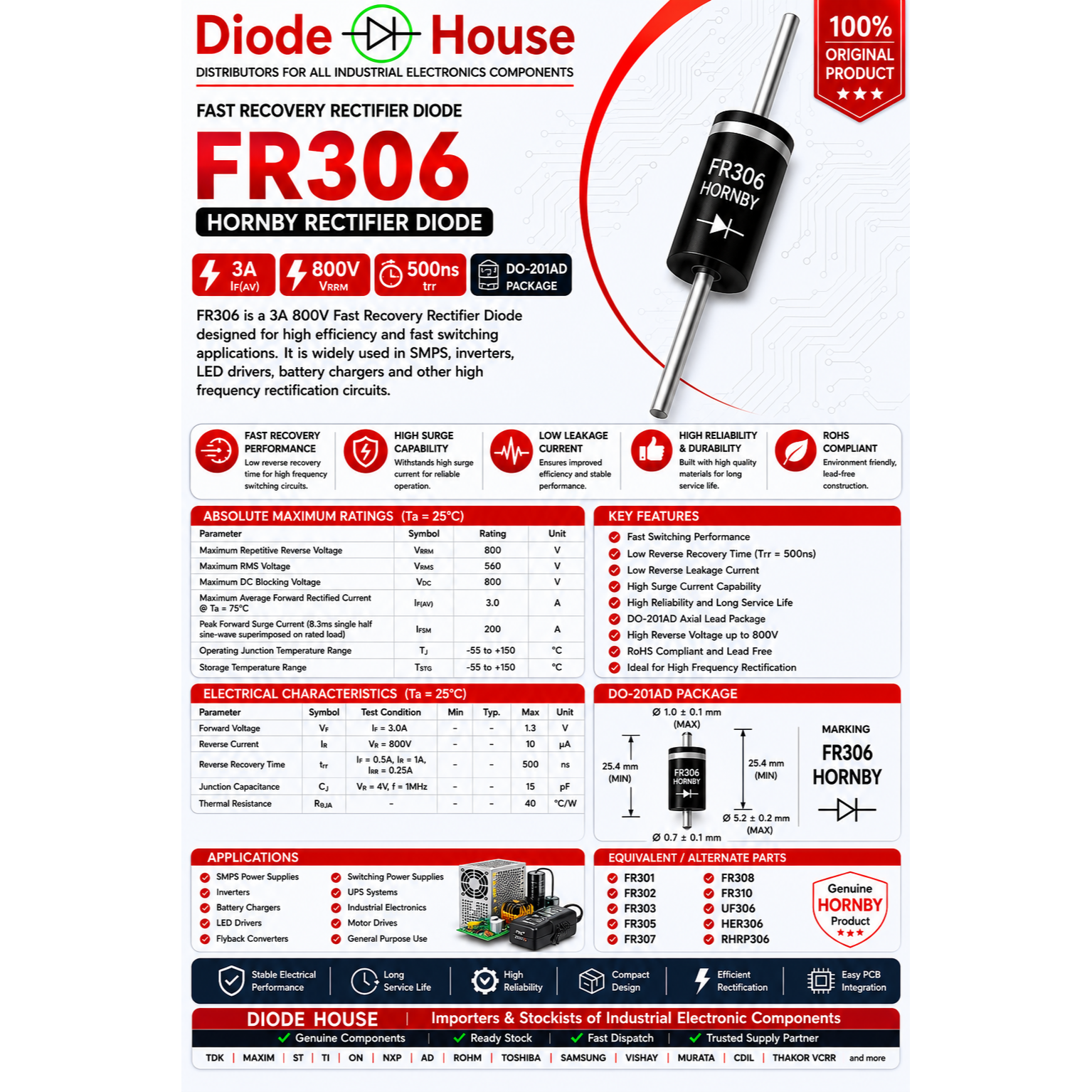

FR306 Fast Recovery Diode is a 3A 800V Fast Recovery Rectifier Diode commonly used in SMPS power supplies, inverters, battery chargers, LED drivers, UPS systems, and high-frequency rectification circuits. It offers faster switching performance compared to standard rectifier diodes like 1N5408.
Key Specifications
Parameter Value
Part Number FR306
Diode Type Fast Recovery Rectifier
Reverse Voltage (VRRM) 800V
Forward Current (IF) 3A
Peak Surge Current (IFSM) 150A
Forward Voltage (VF) 1.3V Max
Reverse Recovery Time (Trr) 500ns Max
Package DO-201AD Axial Lead
Operating Temperature -65°C to +150°C / +175°C (depending on manufacturer)
Main Applications
• SMPS Power Supplies
• UPS Systems
• Inverters
• Battery Chargers
• LED Drivers
• Power Adapters
• High-Frequency Rectification Circuits
• Industrial Electronic Equipment
Features
• Fast reverse recovery performance
• Low forward voltage drop
• Low leakage current
• High surge current capability
• Reliable operation in switching applications
• Suitable replacement for slow recovery rectifiers in many circuits
FR306 Fast Recovery Rectifier Diode 3A 800V Axial Lead High Speed Recovery Diode
