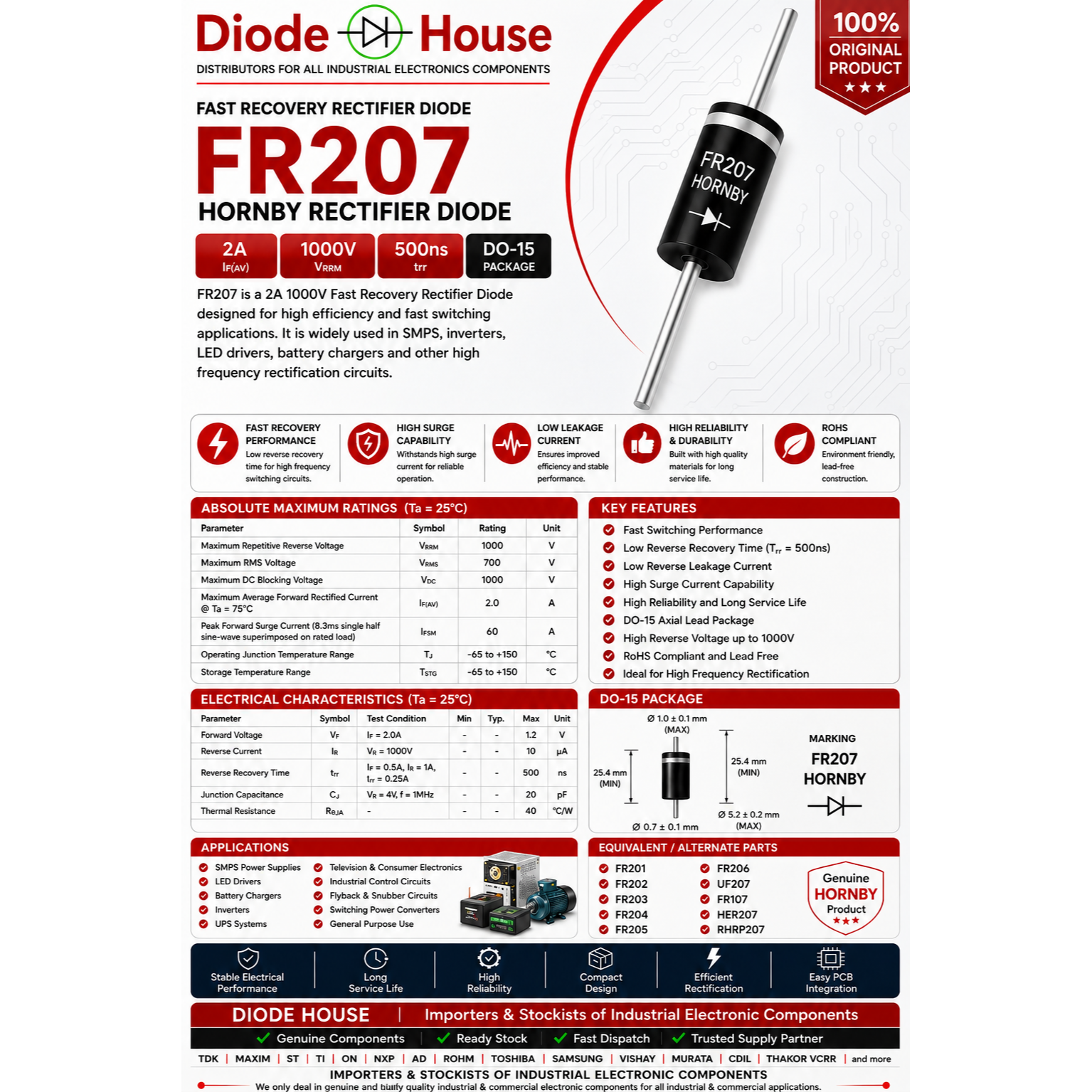

The FR207 Hornby Fast Recovery Rectifier Diode is a high-performance fast recovery rectifier diode designed for switching power supplies, inverters, battery chargers, LED drivers, SMPS circuits, UPS systems, and industrial electronic equipment. It offers fast reverse recovery characteristics, low forward voltage drop, high surge current capability, and reliable operation in high-frequency applications.
Key Specifications
Parameter Value
Part Number FR207
Brand Hornby
Diode Type Fast Recovery Rectifier
Maximum Repetitive Reverse Voltage 1000V
Average Forward Current 2A
Peak Surge Current 60A
Forward Voltage Drop 1.2V Max
Reverse Recovery Time Fast Recovery
Package DO-15 Axial
Operating Temperature -65°C to +150°C
Mounting Type Through Hole
Polarity Cathode Band Marked
Applications
• SMPS Power Supplies
• LED Drivers
• Inverters
• UPS Systems
• Battery Chargers
• Voltage Stabilizers
• Solar Power Equipment
• Industrial Control Boards
• Consumer Electronics
• Switching Circuits
Features & Benefits
✔ Fast Reverse Recovery Performance
✔ High Voltage Capacity (1000V)
✔ High Surge Current Handling
✔ Low Power Loss
✔ Reliable High-Frequency Operation
✔ Durable DO-15 Package
✔ Long Service Life
✔ Suitable for Commercial & Industrial Applications
