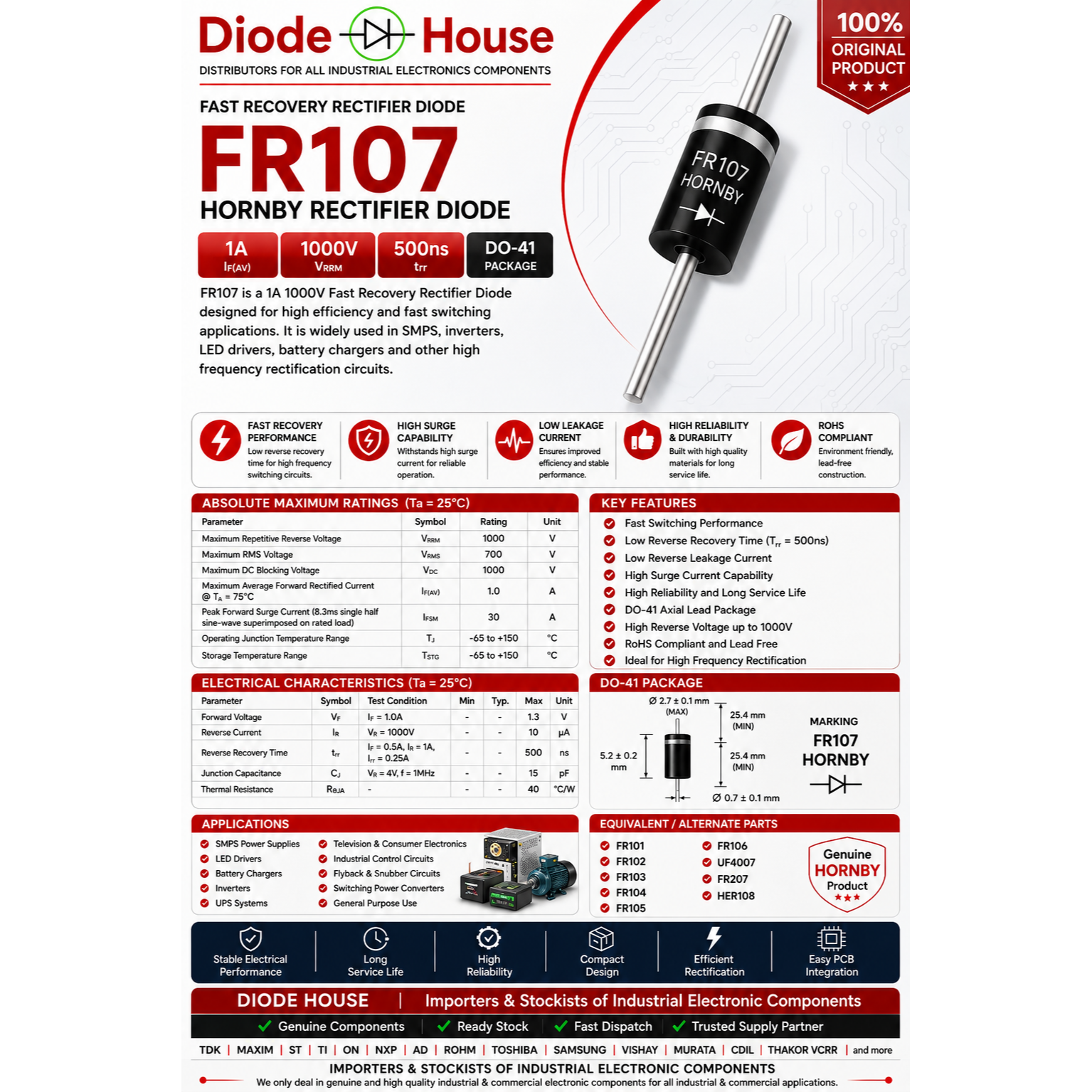

FR107 is a 1A 1000V Fast Recovery Rectifier Diode commonly used in SMPS power supplies, LED drivers, inverters, battery chargers, adapters, UPS systems, and switching circuits where fast recovery performance is required. Typical reverse recovery time is around 500ns, making it significantly faster than standard rectifier diodes like 1N4007. Key Specifications Parameter Value Part Number FR107 Diode Type Fast Recovery Rectifier Maximum Repetitive Reverse Voltage (VRRM) 1000V Average Forward Current (IF) 1A Peak Surge Current 30A Reverse Recovery Time (Trr) 500ns Forward Voltage Drop (VF) 1.3V Max @ 1A Package DO-41 Axial Lead Operating Temperature -65°C to +150°C Features ✔ Fast Switching Performance ✔ Low Reverse Leakage Current ✔ High Surge Current Capability ✔ High Reliability and Long Service Life ✔ Suitable for High Frequency Rectification ✔ RoHS Compliant Construction ✔ Compact DO-41 Package for Easy PCB Mounting Applications • SMPS Power Supplies • LED Drivers • Battery Chargers • Inverters • UPS Systems • Television & Consumer Electronics • Industrial Control Circuits • High Frequency Rectification • Flyback Protection Circuits • Switching Power Converters
