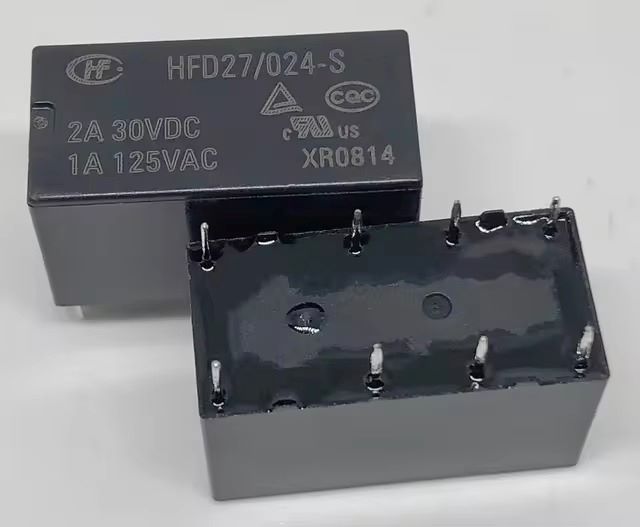

24 Volt DPDT Subminiature DIP Telecom Relay HFD27/0024-S 24 Volt DPDT PCB Mount Telecom Relay HFD27/0024-S is a subminiature DIP relay which can be mounted on a 16 pin IC base. This is a Double Pole Double Throw (DPDT) type relay and is Epoxy Sealed so can be used with automatic wave soldering machines. The HFD27/0024-S relay has bifurcated contacts thus reduce contact bounce, increase reliability and assist in switching. Bifurcated contacts conduct the switching more efficiently. We have Various types of Relay, Relay Socket and SSR. Check out our complete collection of Relay, Relay Socket and SSR. Specification of HFD27/0024-S 24 Volt DPDT Telecom Relay Model Number : HFD27/0024-S Type : Telecom Relay Voltage : 24 VDC Current : 2 Ampere Number Of Poles : 2 Pole Mounting Type : PCB Mounting Features of HFD27/0024-S 24 Volt DPDT Telecom Relay Contact Arrangement: 2 Form C Contact Current Rating: 5 A Max Switching Current (AC): 2 Ampere Max Switching Voltage (VAC):240VAC Max Switching Voltage (VAC): 240VAC Max Switching Voltage (VDC): 120VDC Coil power:Sensitive 200mW Termination:PCB Mounting:DIP Construction:Plastic sealed Contact capacity: AgNi+Au plated Dielectric strength (between coil & contacts):2000VAC 1min Contact plating: Au plated Mechanical endurance: 100000000 operations Application of HFD27/0024-S 24 Volt DPDT Telecom Relay UPS Invertors Air Conditoner, Security Equipments Household Appliances Automotive Products
