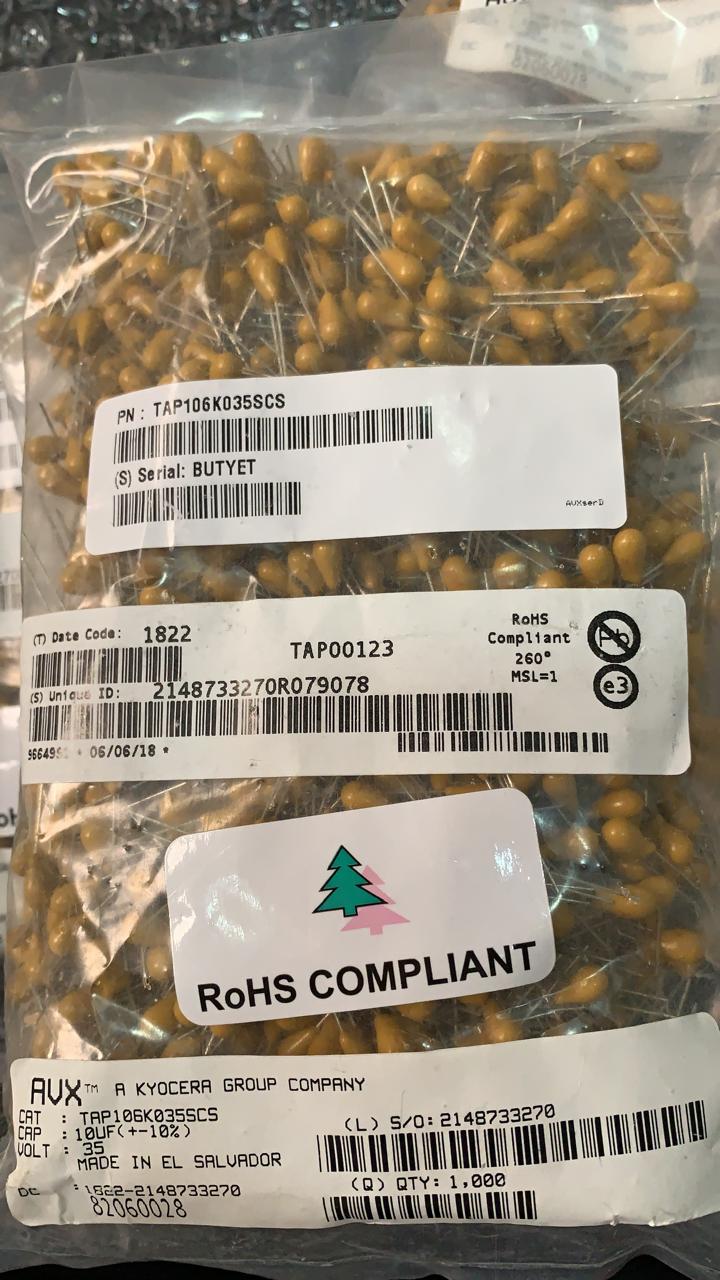

10uF 35V Tantalum Capacitor ±10% Tolerance
10uF/35V Tantalum Capacitor, A capacitor (originally known as a condenser) is a passive two-terminal electrical component used to store energy electrostatically in an electric field. Tantalum electrolytic capacitors are exceptionally polarized devices. While aluminum electrolytic capacitors, which are polarized as well, might survive a briefly applied reverse voltage, tantalum capacitors are very sensitive to reverse polarization. If a reverse polarity voltage is applied, the dielectric oxide breaks down, sometimes forming a short circuit. This short circuit may later cause thermal runaway and destruction of the capacitor. Tags, 10 uF 35V Capacitor, 10uF 35V Capacitor, 35V 10uF, 10 uF 35V Tantalum Capacitor, 10uF 35V Tantalum Capacitor, 35V 10uF Tantalum Capacitor, Tantalum Capacitor.
Features:
Small volume and small capacity error
Wide temperature range, high-temperature resistance
Long life, high insulation resistance, small leakage current
Equivalent series resistance (ESR) has good high-frequency performance
Feature/Specs:
Manufacturer Part No: TAP104K035SCS
Manufacturer: KYOCERA AVX
Product Type: Tantalum Capacitors – Solid Leaded
Series: TAP
Capacitance: 10 uF
Voltage Rating DC: 35 VDC
Lead Spacing: 2.5 mm
Diameter: 4.5 mm
Tolerance: ±10 %
ESR: 26 Ohms
Operating Temperature Range: -55°C ~ 125°C
Capacitance Value: 100 nF
Capacitance Value: 100000 pF
Dissipation Factor: 4
Lead Diameter: 0.5 mm
Leakage Current: 500 nA
Termination Style: Radial
Length: 7 mm
Application:
Decoupling, smoothing, filtering
Switch mode and point of load power supply
Automotive – infotainment and cockpit electronics
